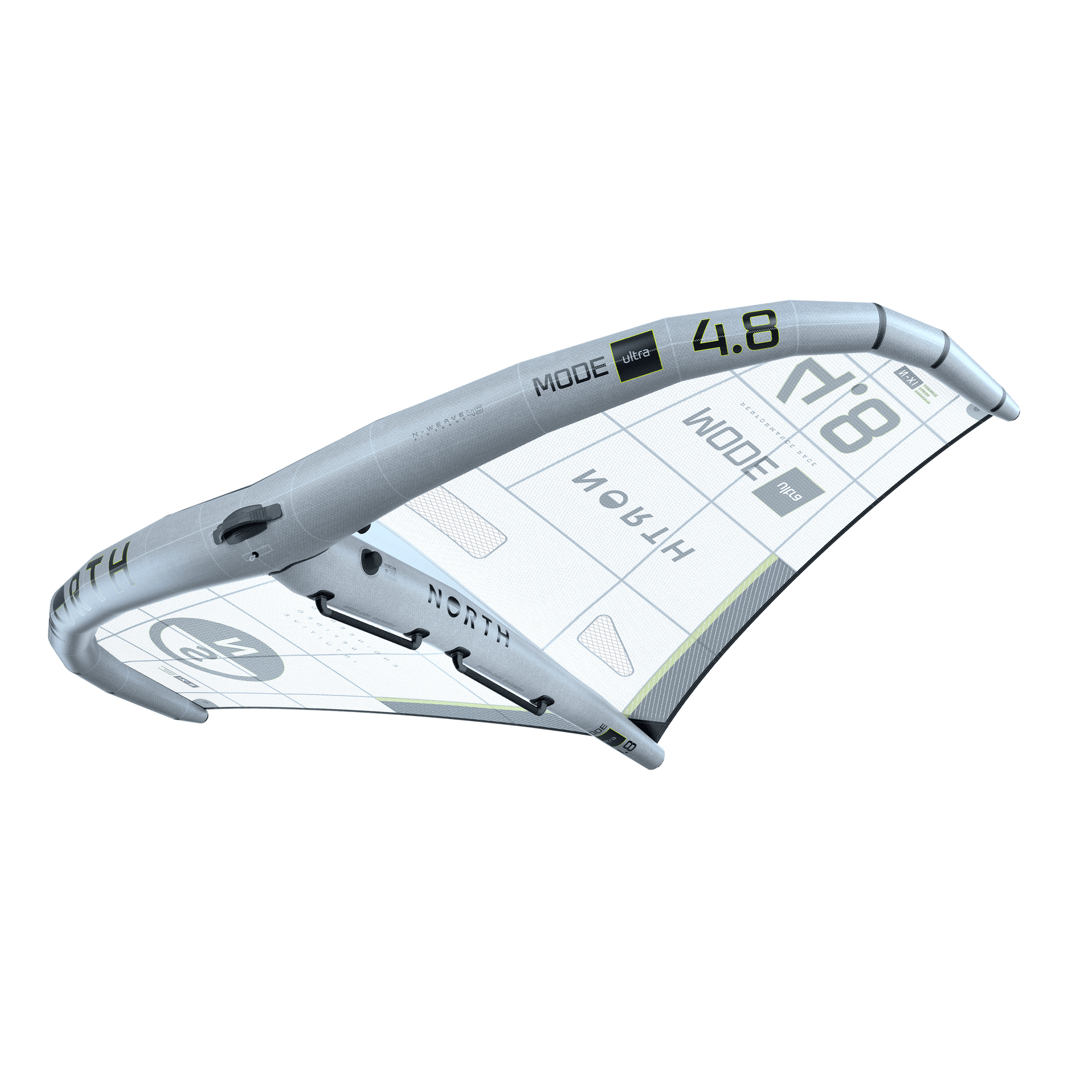

North MODE ULTRAPerformance Race

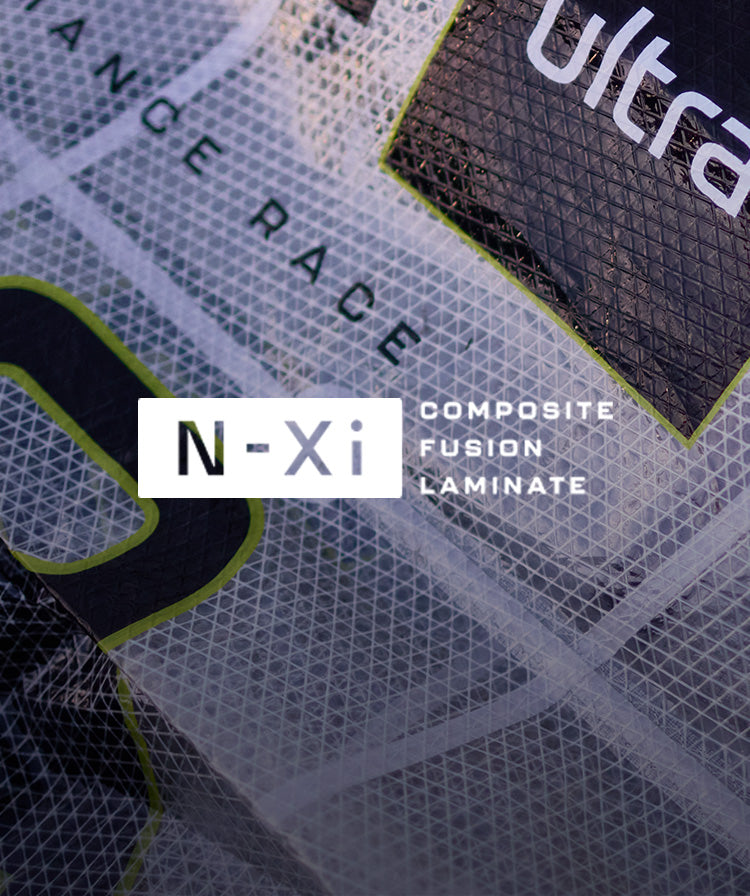

Powered by N-Xi

The high-performance canopy material is engineered from two 66% recycled laminate films, sandwiched around UHMWPE fibres laid in the 0 direction and +/- 60-degree direction, making it ultra-stiff in three directions. We’ve orientated the Mode Ultra’s panel layouts to take advantage of these fiber directions. **HANDLE WITH CARE** N-Xi is a performance race wing material which requires more careful handling than a ripstop canopy. While North recommends storing all of our wing canopies by rolling and folding, the Mode Ultra has a specially designed bag to accommodate the rolled wing. No folding of the N-Xi canopy is required.

N-Weave45 Airframe

The cross-ply reinforced N-Weave 45 airframe creates a stiffer, lighter rig that holds its shape when under load and has a highly efficient power delivery. The biaxial 45-degree laminate helps to control the torsional stiffness of the airframe. North developed N-Weave, a low-elongation, high tensile strength woven fibre, to help reduce geometric compromise in our inflated structures. N-Weave45 reduces structural deflection and transfers wind energy into greater forward speed. The weight savings translate into greater performance and more efficient power delivery in light air and make the wing easier to handle in all conditions. N-Weave also has very high cut and abrasion resistance. The UPE fibres that makeup N-Weave are known for their resistance to water, moisture, most chemicals, UV and microorganisms. UPE is also known for its durability and toughness. N-Weave 45 Airframe

Carbon UDi Technology

North Sails is renowned for using this technology in their podium-proven 3Di race sails. We’ve implemented the same material inside the entire Leading Edge, from tip to tip, to stiffen the Mode Ultra's airframe further.

Rigid and direct – feel every micro-gust

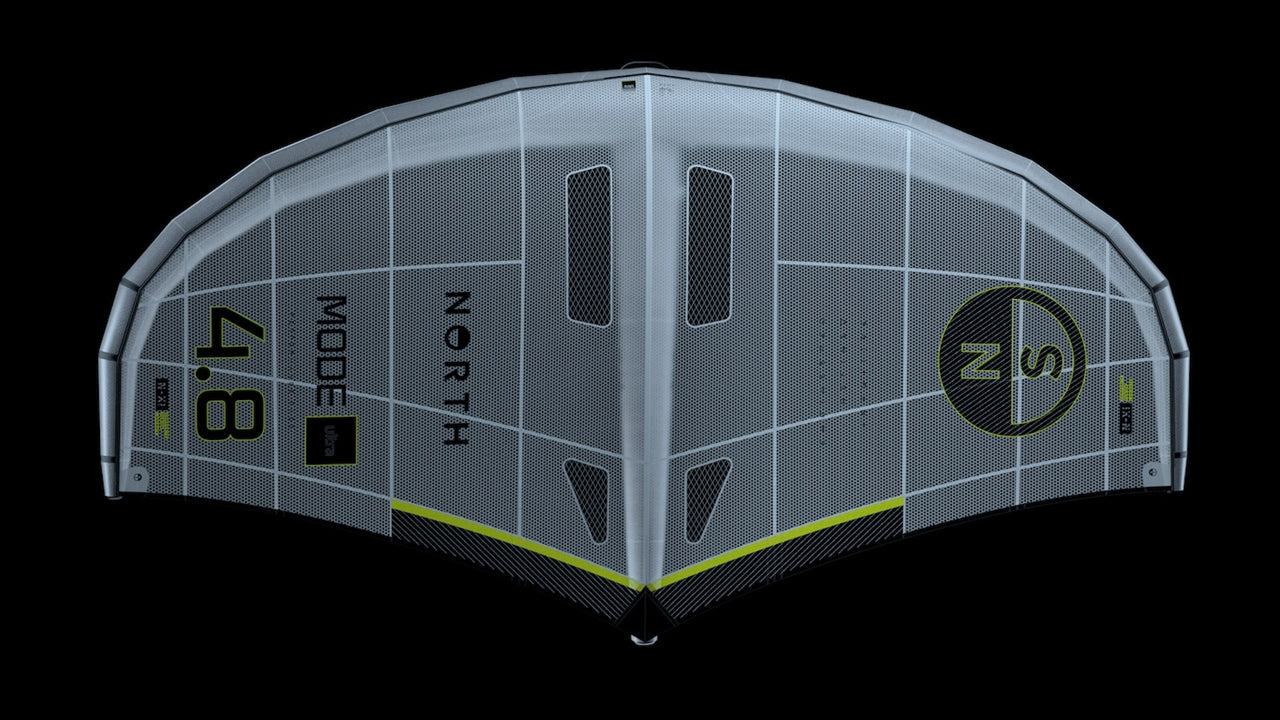

Efficient high aspect ratio design relative to wing size

The 4.2m has the highest aspect ratio, and the ratio lowers with each size until you get to the 6’5, where the wingspan is further reduced to prevent tip drag. The expense of a high aspect ratio is a loss in stability, so we’ve also reduced the aspect ratio on the smallest 3.5m wing to give more stability at the highest true wind speeds, making it more comfortable to ride in gusty conditions.

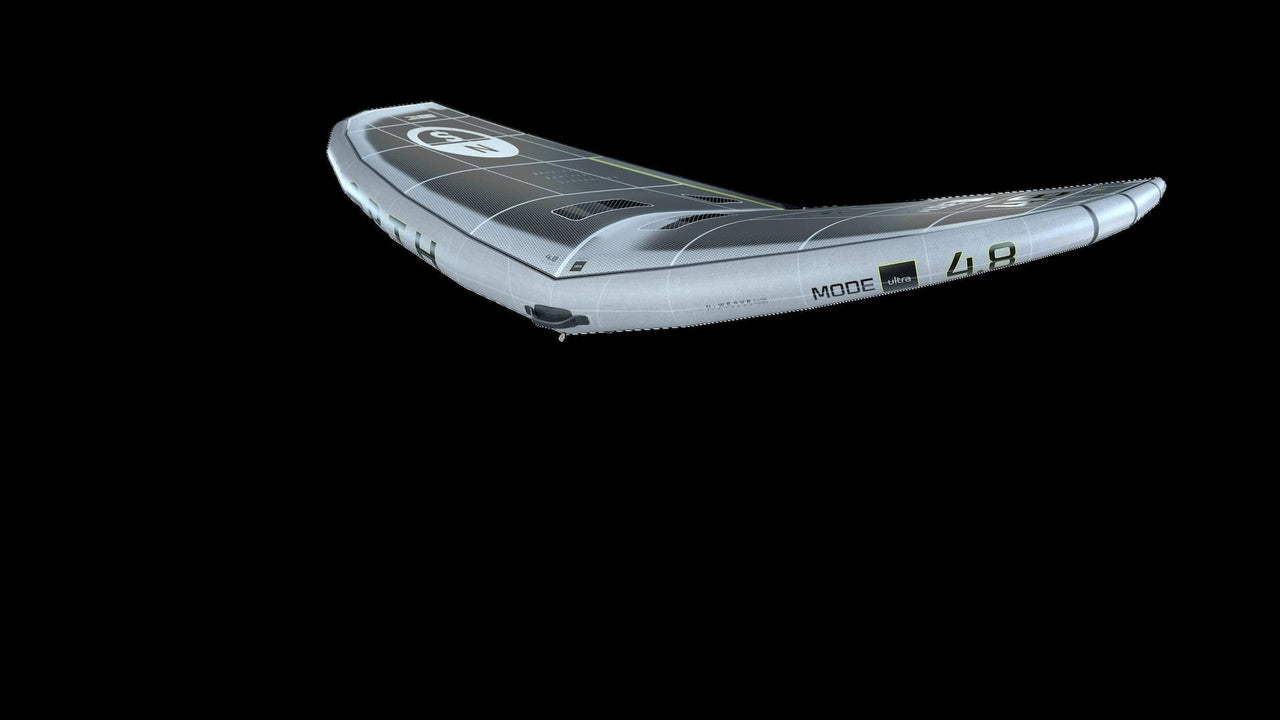

VMG-optimised design. Pinch higher, reach deeper.

The Mode Ultra’s fast, VMG-optimized design enables you to sail closer to the wind, on higher upwind angles, reducing your need to tack or gybe, so you reach the mark as quickly as possible.

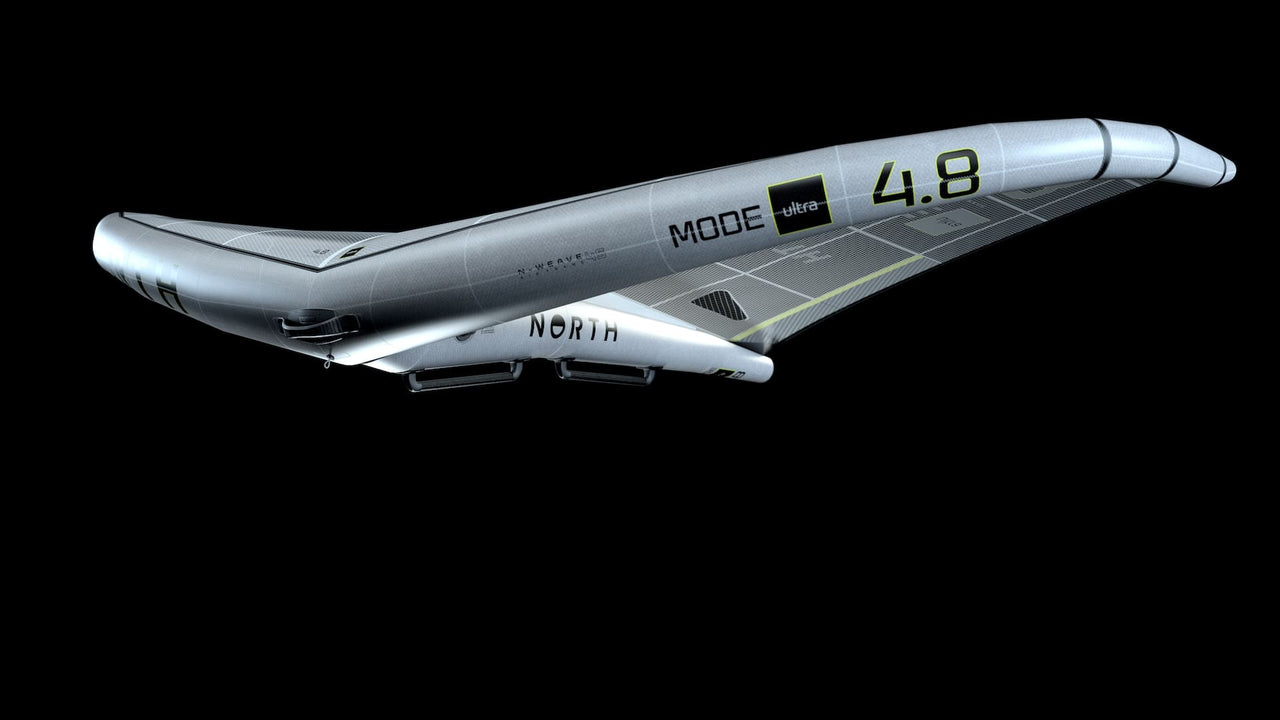

Thin, low drag sections to generate speed and forward thrust.

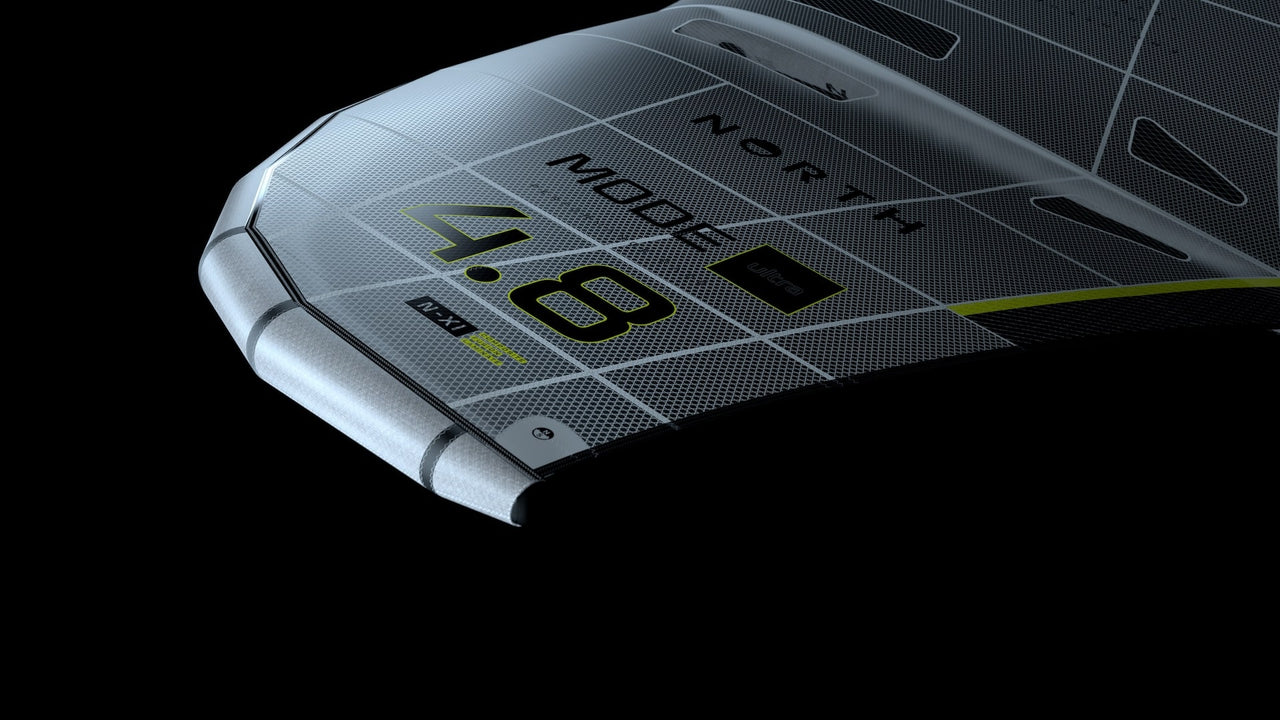

Excels at the top of its range

We’ve designed this wing so riders can confidently upsize, giving you the surface area required to go fast downwind when the apparent wind speed drops. Getting a flat wing going in light air can be challenging, but once you’ve mastered the pump skills required to get up on foil, the faster you can go. We’ve tuned the larger 6.5m with more profile depth for extra bottom-end performance.

Carries speed through the lulls

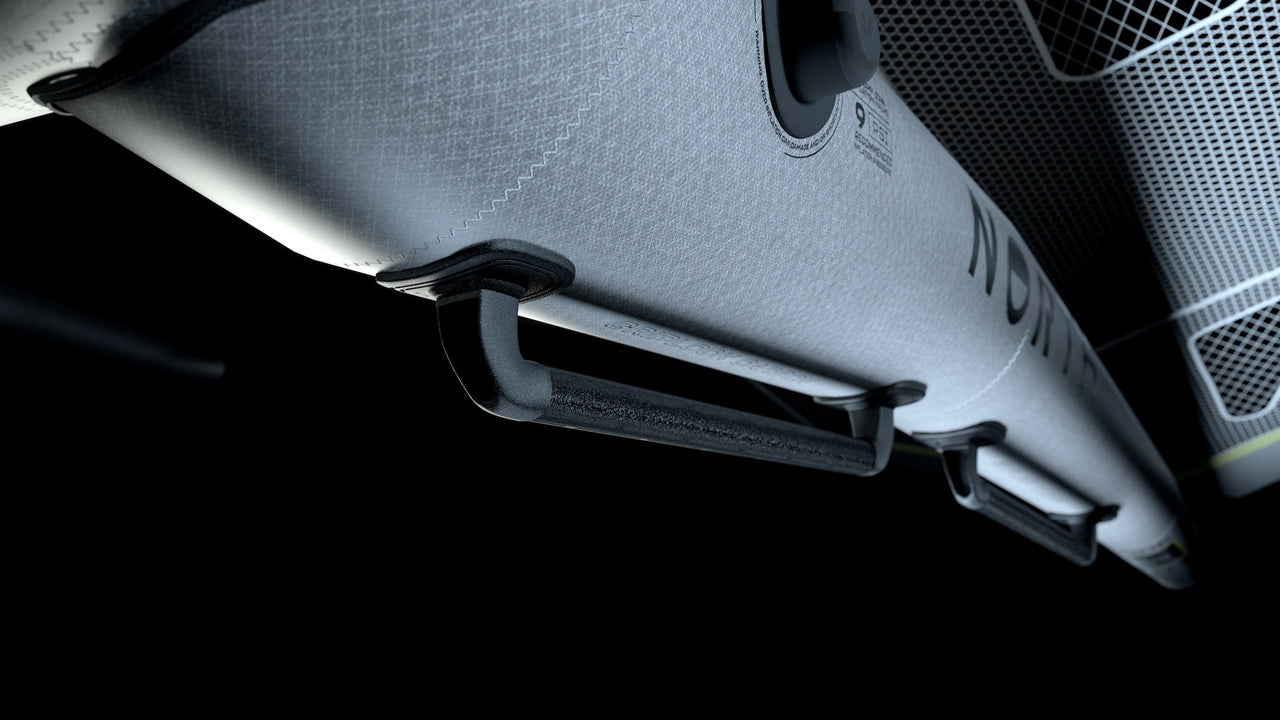

Ergonomic strut shape and handle positioning for greater rider comfort

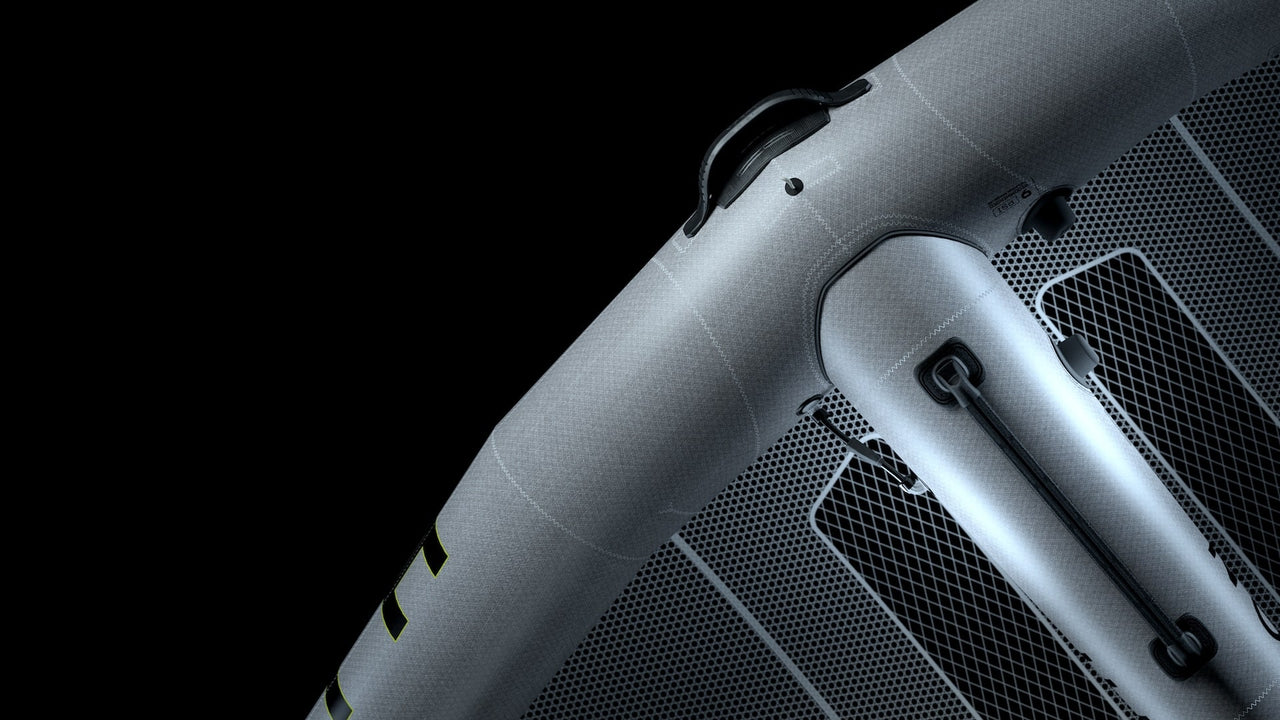

Detachable aerodynamic tow handle
