North SONAR STABILIZER SHIM KITFoil Accessory
product code: 85004.220093
Features
- Stackable to cover -0.5deg to +2.5deg of tuning
- Instant customisation without removing the Stabilizer
- Tune for different disciplines and front wings
- Cost-efficient foil system adjustment

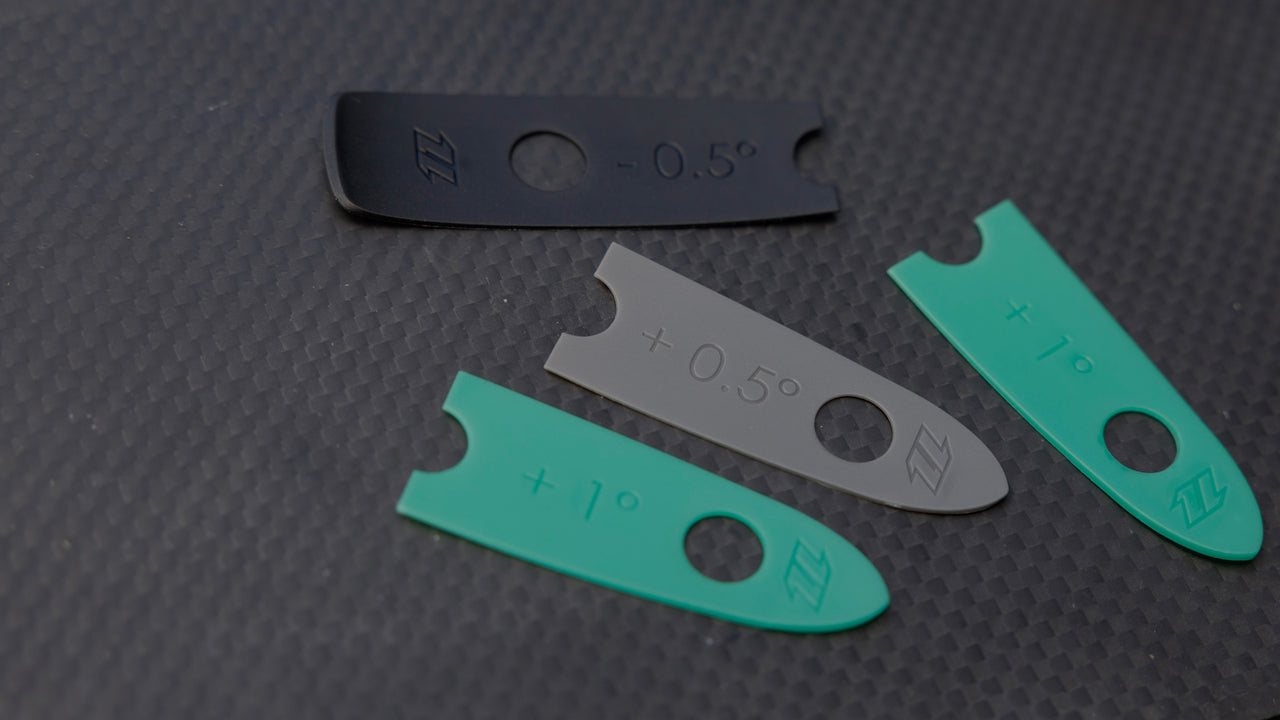

1x -0.5 Deg Shim, 1x 0.5 Deg Shim, 2x 1 Deg Shim

Stackable to cover -0.5deg to +2.5deg of tuning
The Shim Kit contains four individual
Instant customisation without removing the Stabilizer
stackable shims
Tune for different disciplines and front wings
enabling multiple combinations.
Cost-efficient foil system adjustment

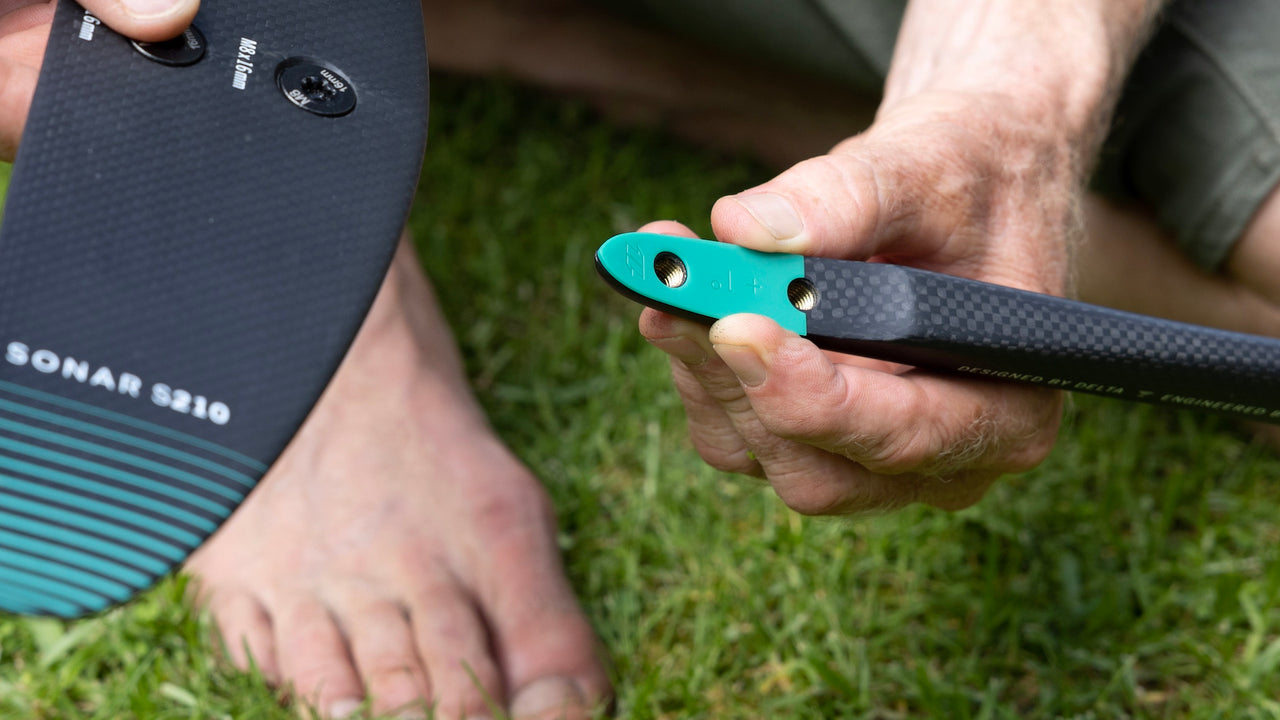

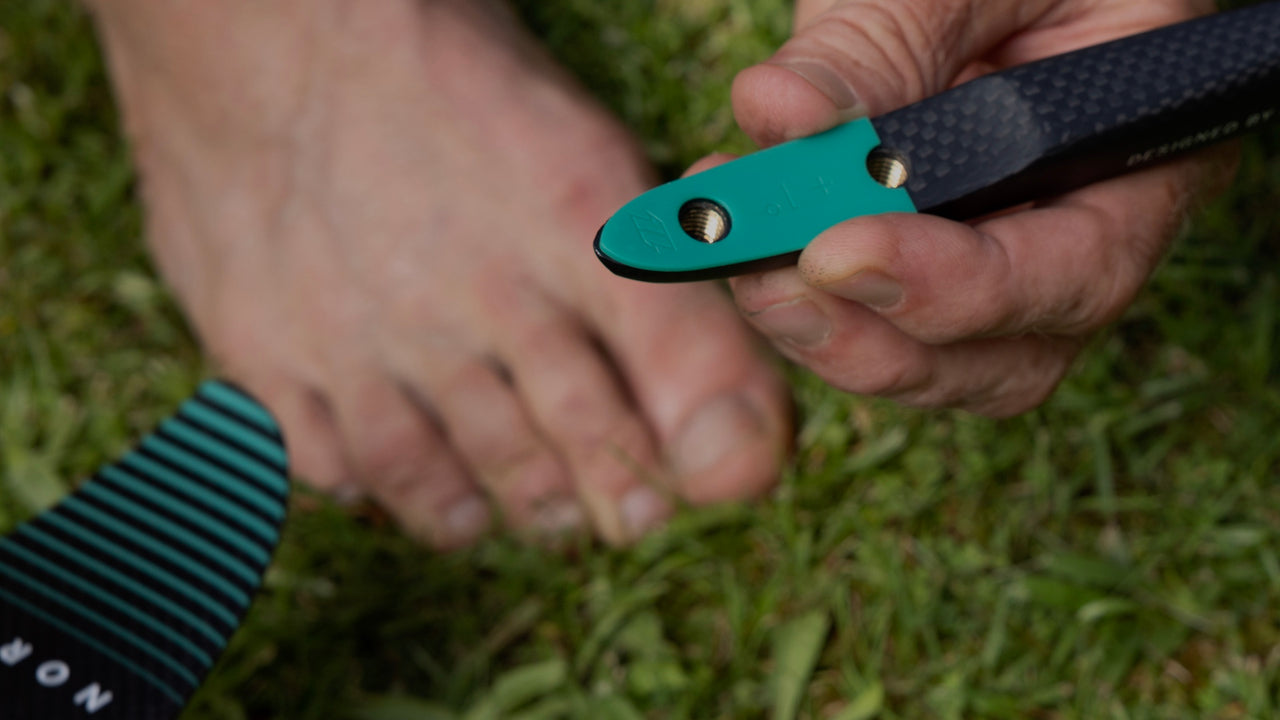

We’ve designed the shims to slot into place using a single screw insertStackable to cover -0.5deg to +2.5deg of tuning

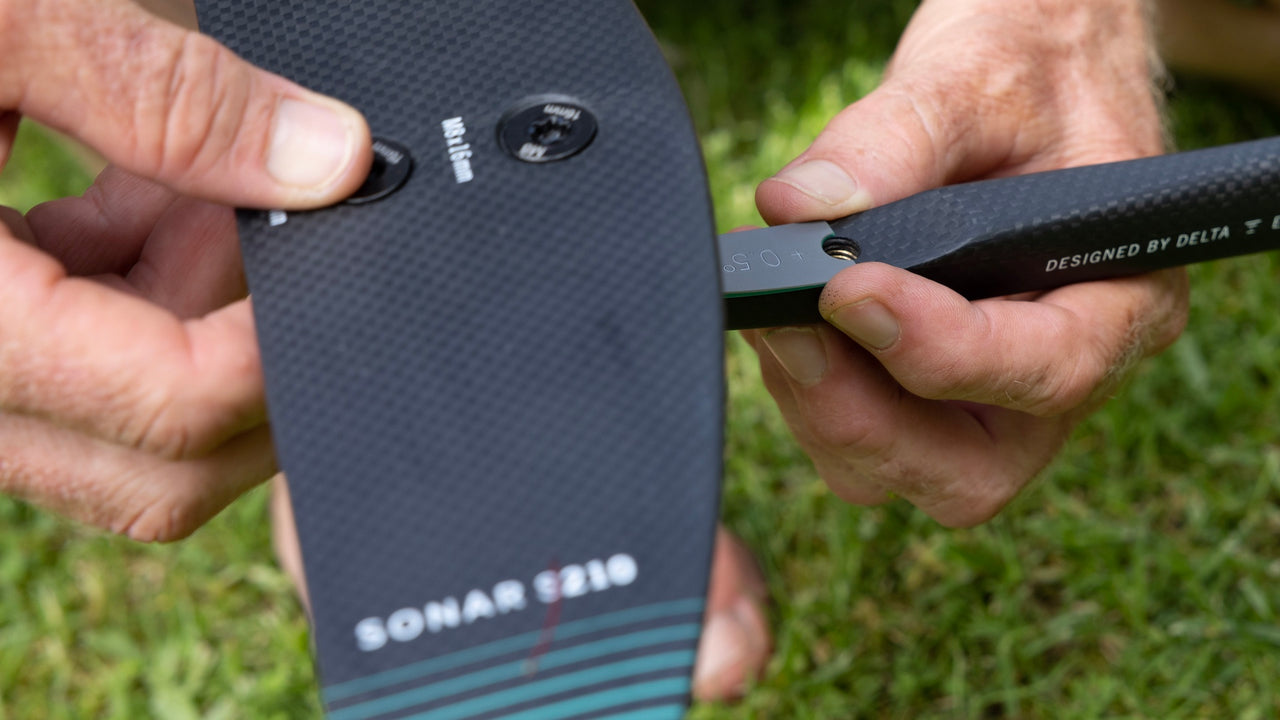

Placing one or more shim in between the fuselage and stabilizer changes the Angle of Attack (AOA) and controls the amount of downforce the stabilizer creates on the overall foil system. To increase the stabilizer AOA
Instant customisation without removing the Stabilizer
add positive shim. Positive shimming will increase front foot pressure. Negative shimming will reduce front foot pressure. The full stack (+2.5deg) creates the maximum recommended AOA to ensure your stabilizer is still effective without creating drag.
Tune for different disciplines and front wings
What feels good on a wing or kite foilboard might not be ultimate for prone or tow-foil surfing. Shimming allows you to tweak the AOA and finetune your ride for a completely different feel. Shimming allows you to make full use of the Sonar modular foil system
Cost-efficient foil system adjustment
so you get maximum performance from your front wings across different disciplines.
