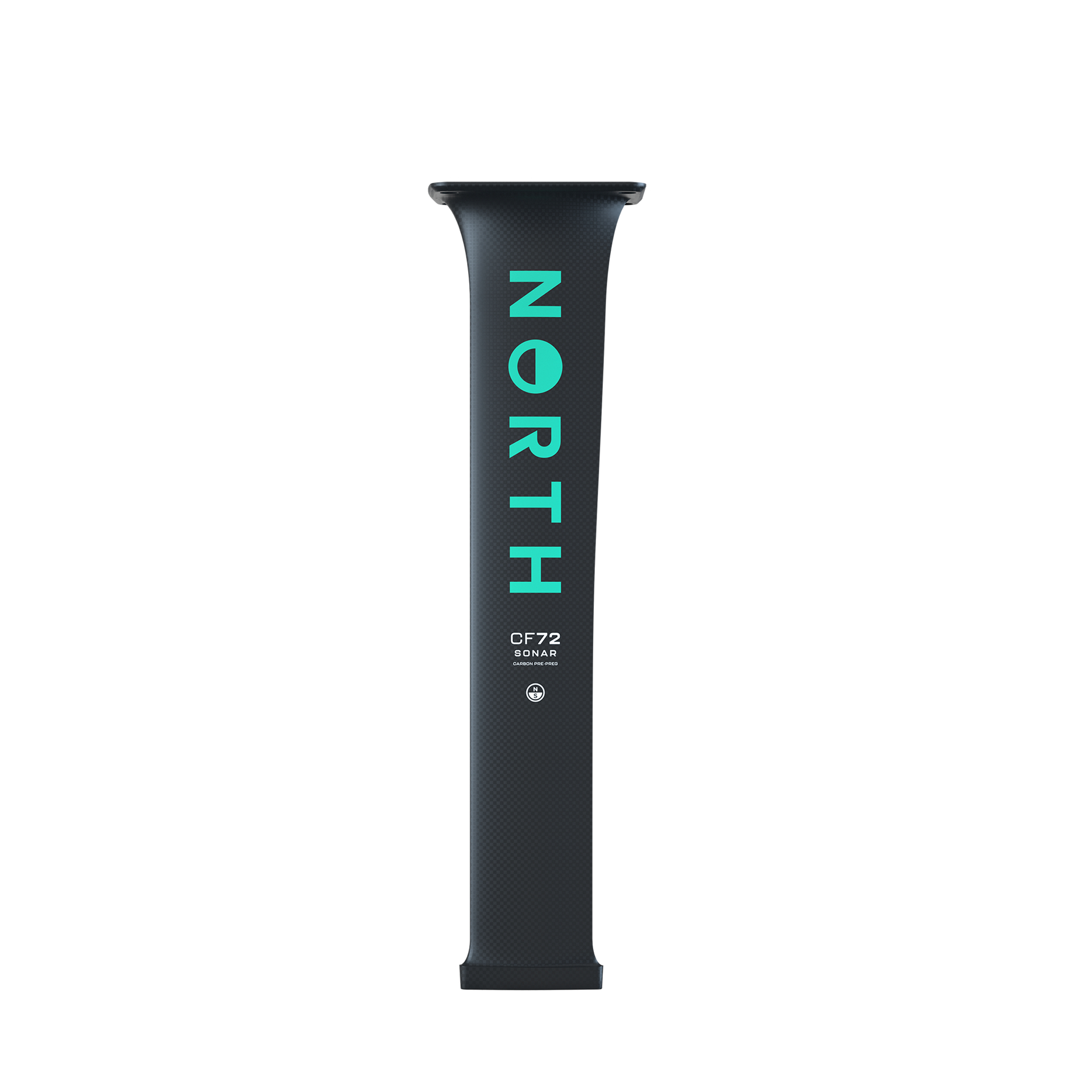

North CF CARBONSonar Mast
Our highest quality pre-preg carbon mast delivers a stiffer, more direct feel and more immediate feedback. Tapered for optimal load transfer and lower surface friction, the refined one-piece design presents a strong, durable and corrosion-free choice across all disciplines. The CF72 mast is
...
ideal for shallower waters, and prone surf foiling. The longer CF85 mast increases overall ride performance in choppy conditions. Features GeoLock.
product code: 85010.210124
Features
- Highest quality pre-pregΒ carbon mast for a stiffer and more direct feel and with immediate feedback
- GeoLock tapered geometry locking system
- Industry Standard 165x90mm mounting pattern
- Compatible with any Sonar Carbon or Alloy Fuselage
- Tapered for optimal load transfer and lower surface friction
- Refined one-piece design for a strength and durability across all disciplines
- CF72 mast is ideal for shallower waters and prone surf foiling
- Longer CF85 mast increases overall ride performance in choppy conditions
Materials
- Carbon
Mast and cover
Size chart
MAST | LENGTH MM | THICKNESS MM (min) | CHORD MM (min) | WEIGHT (KG) | CONSTRUCTION | BOARD ADAPTOR |
---|---|---|---|---|---|---|
CF95 | 950 | 16 | 115 | 2.30 | CARBON PRE-PREG | N/A |
CF85 | 850 | 16 | 115 | 1.9 | CARBON PRE-PREG | N/A |
CF72 | 720 | 16 | 115 | 1.75 | CARBON PRE-PREG | N/A |
MAST
LENGTH MM
THICKNESS MM (min)
CHORD MM (min)
WEIGHT (KG)
CONSTRUCTION
BOARD ADAPTOR
CF95 | CF85 | CF72 | |
---|---|---|---|
950 | 850 | 720 | |
16 | 16 | 16 | |
115 | 115 | 115 | |
2.30 | 1.9 | 1.75 | |
CARBON PRE-PREG | CARBON PRE-PREG | CARBON PRE-PREG | |
N/A | N/A | N/A |
