North SWELLSurf Foilboard2022

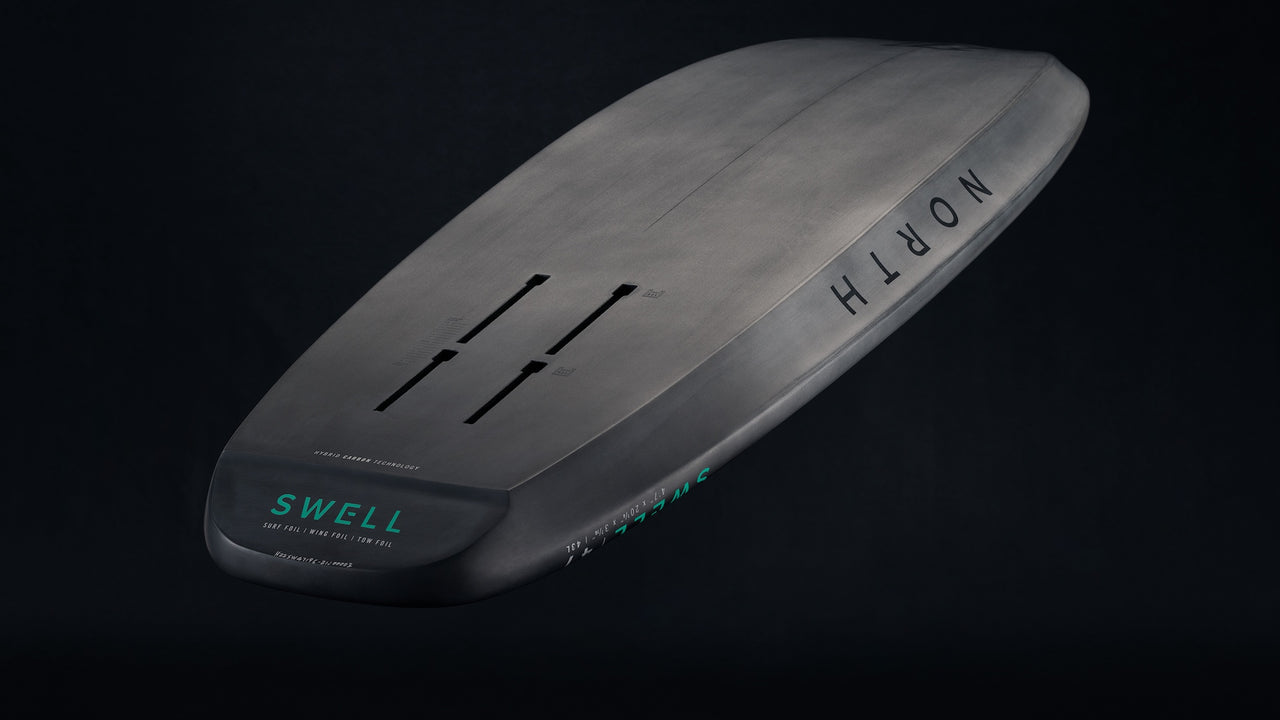

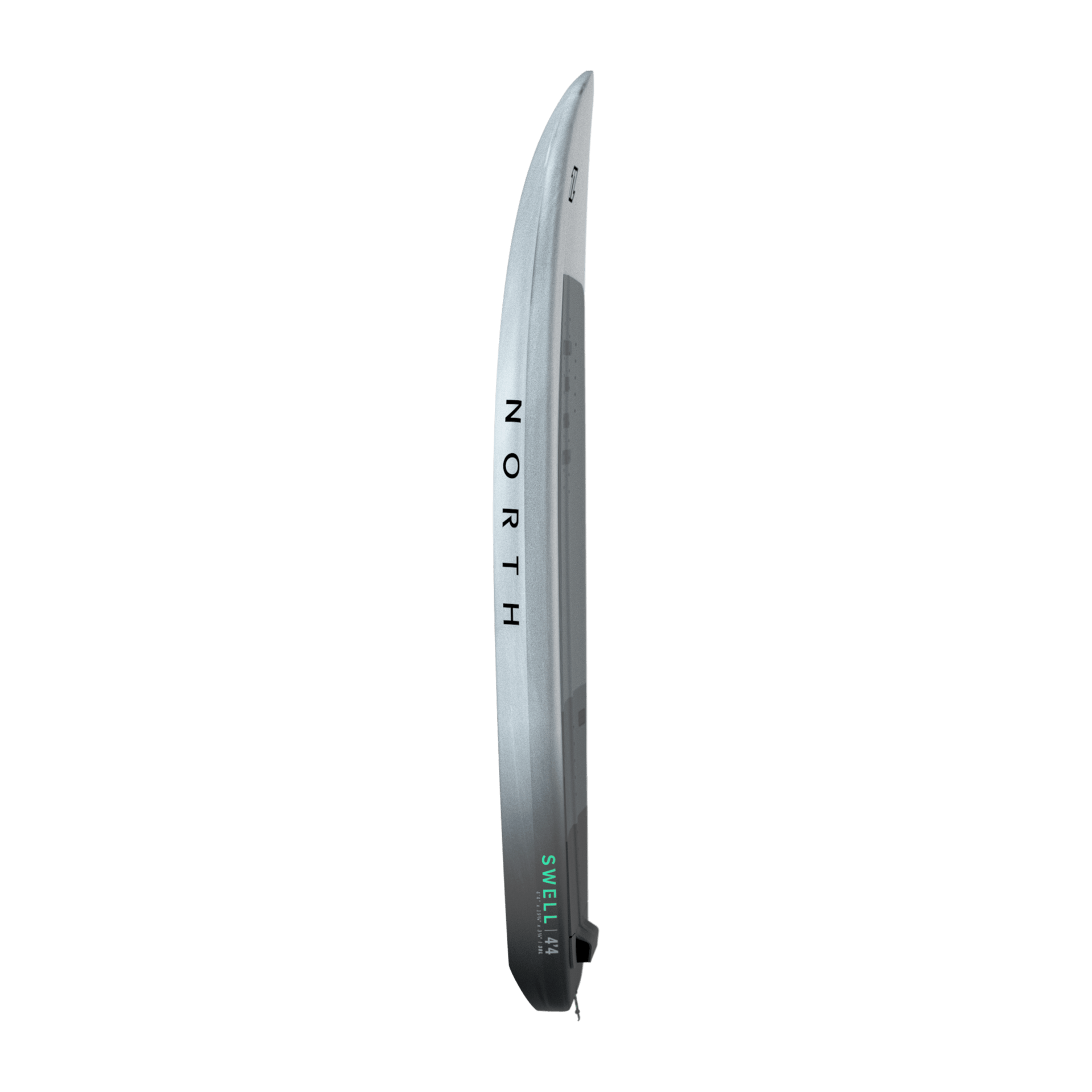

Redefined rocker line

As foiling develops and we see a progression toward riding lower in turns and even touching the water, the synergy between your board and foil becomes even more important. The two must enhance each other, not limit the potential of either one – or the rider.

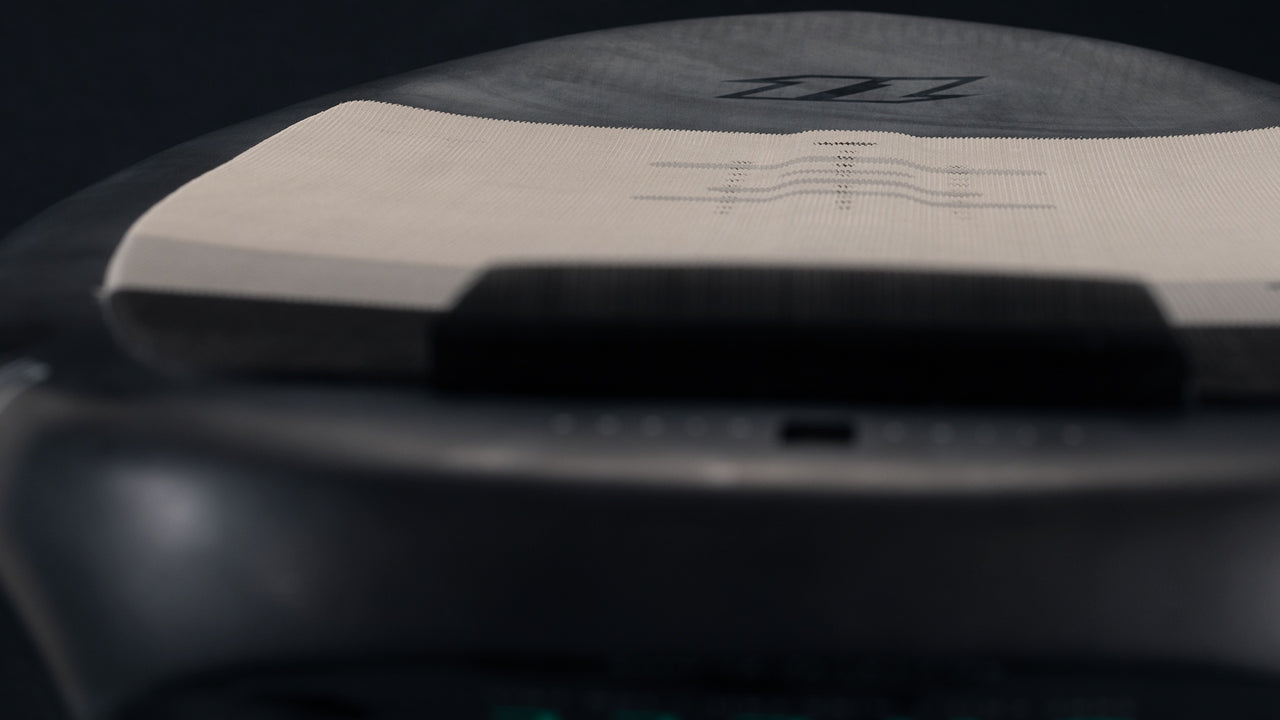

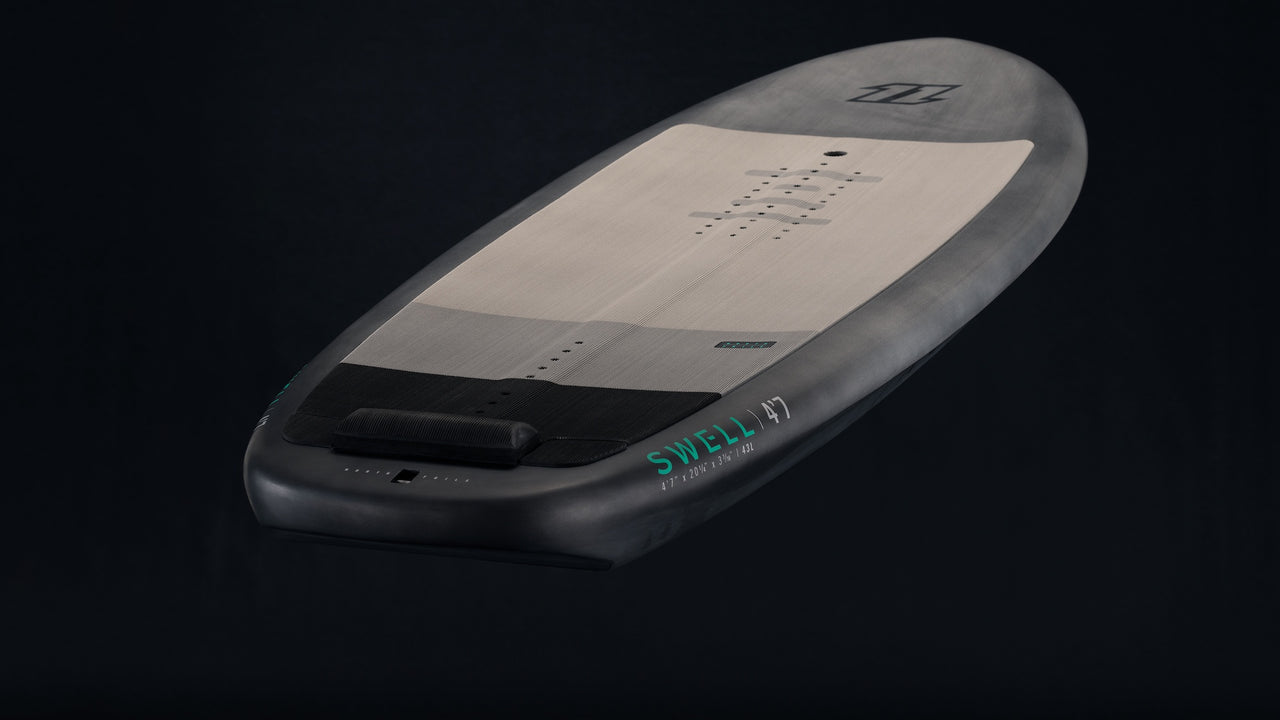

Deeper recessed deck

The recessed deck results in most of the board’s volume being shifted out toward the rails, in turn providing greater balance and stability on takeoffs and touchdown.

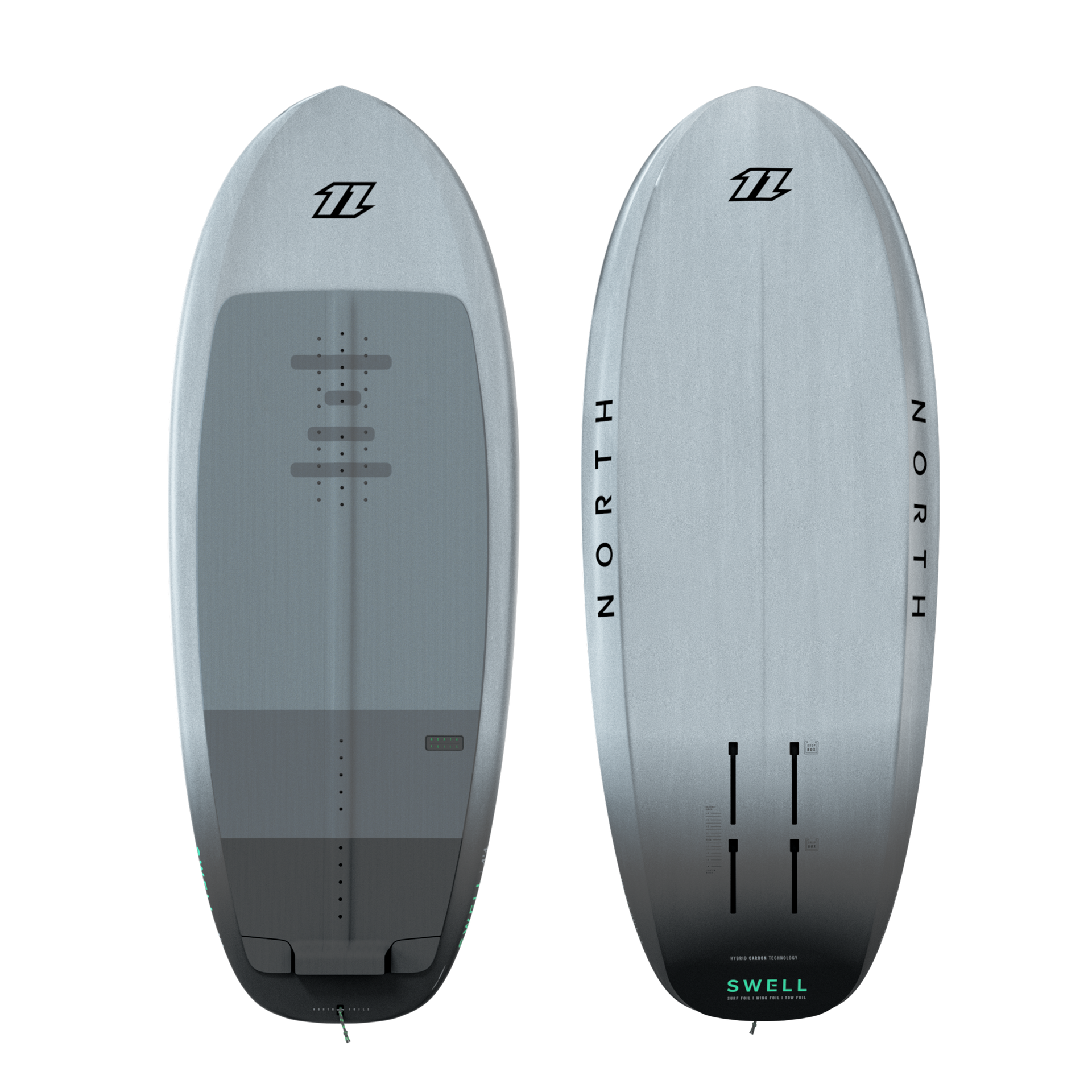

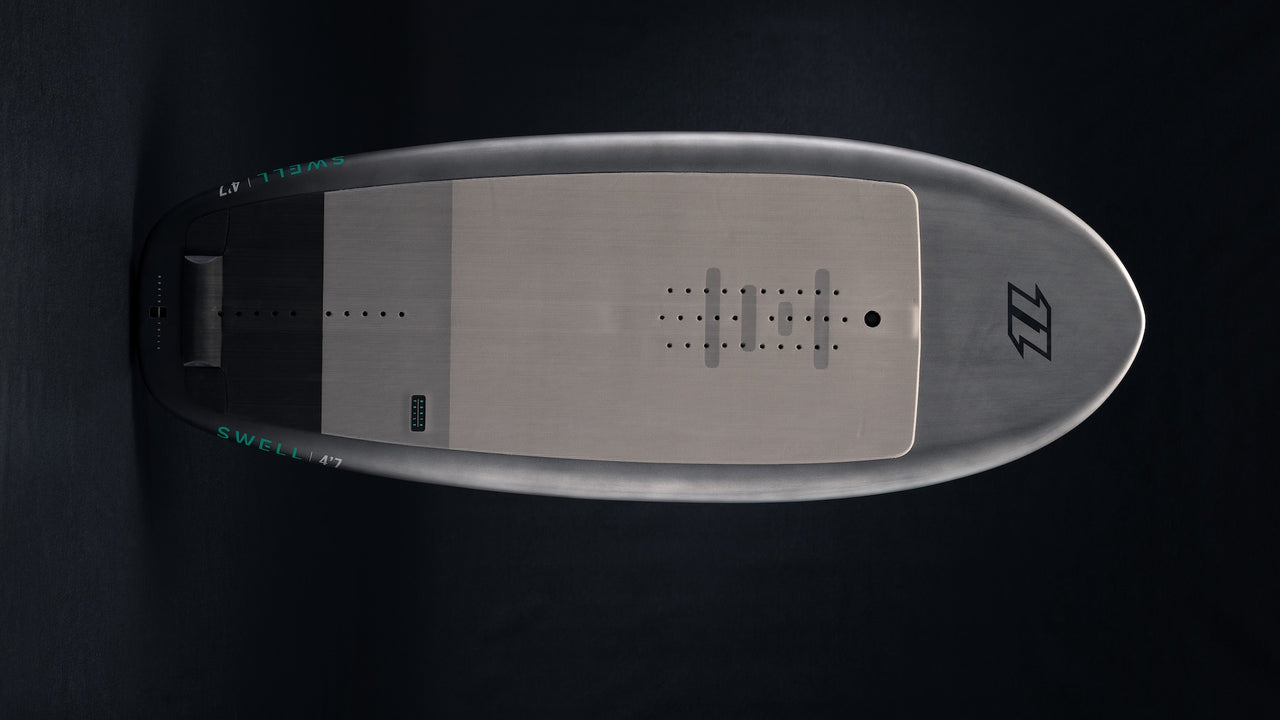

Modified compact outline

For 2022 we’ve moved the wide point of the board slightly further forward, redistributing the volume to bring the board’s centre of buoyancy forward, right underneath your stance. Having the centre of buoyancy directly underneath your stance is essential for finding that sweet spot on the board where you can remain without shifting your weight forward and aft.

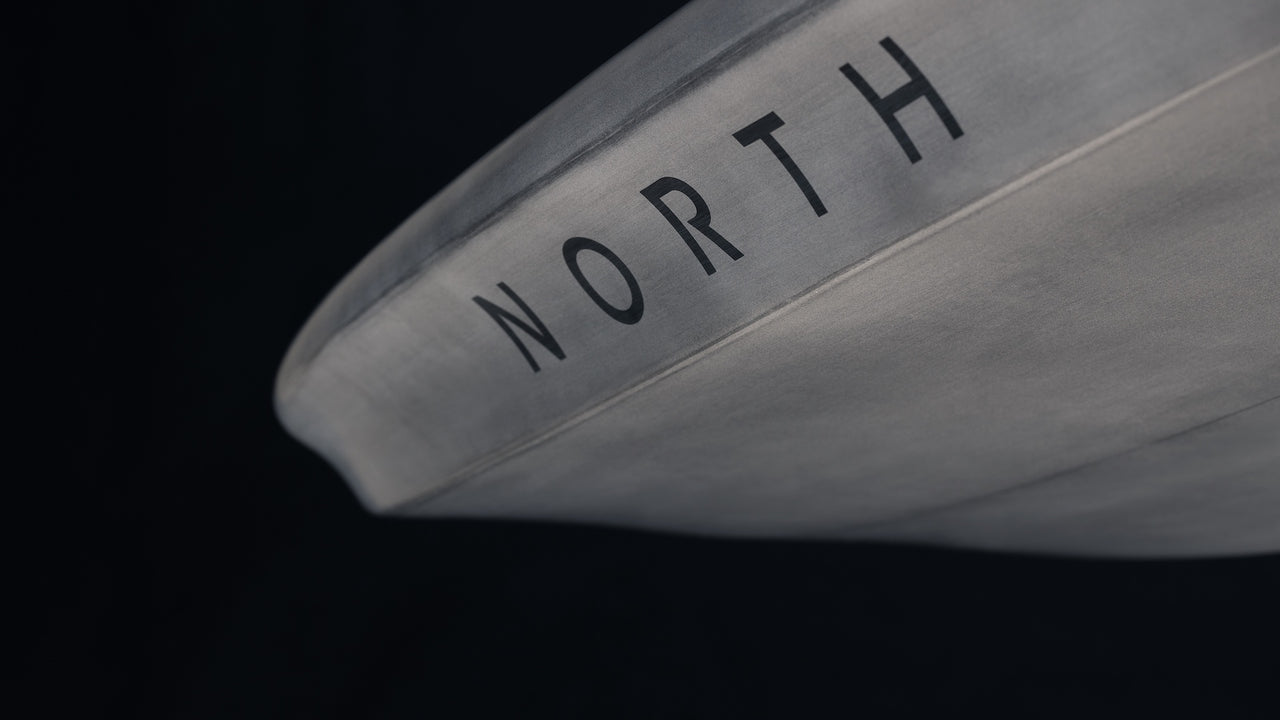

Easy to grab bevelled rails

When foil-surfing, you may need to grab the rail for added stability and control of your foil. We've added a concave to the forward rail, so it's easier to hold and balance. The concaved bevelled rail also allows your fingers to stay clear of the planing surface, eliminating drag.

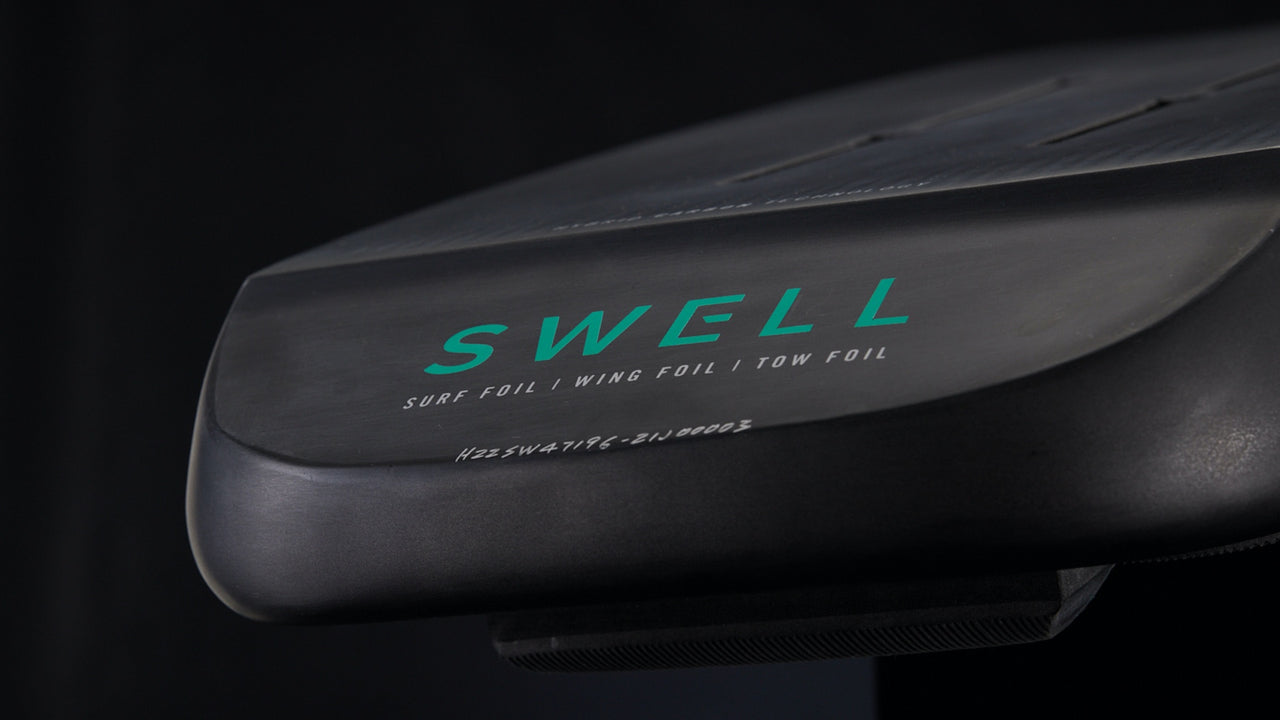

Tapered tail

In addition to the centreline strap inserts, we’ve introduced a new offline strap insert option to accommodate both goofy or natural riding. The rear strap inserts have also been moved back for a wider stance, more comfort and stability. (Straps sold separately)

Effortless touchdown recovery

A light yet durable epoxy composite laminate, with a balanced carbon and e-glass fibre layup is wrapped around an EPS core. High-density closed cell PVC reinforcement around the foil track mount, leash plug, and foot strap inserts spreads the load. An ultra-lightweight double bamboo reinforcement layer under the standing area adds greater impact resistance and rigidity.

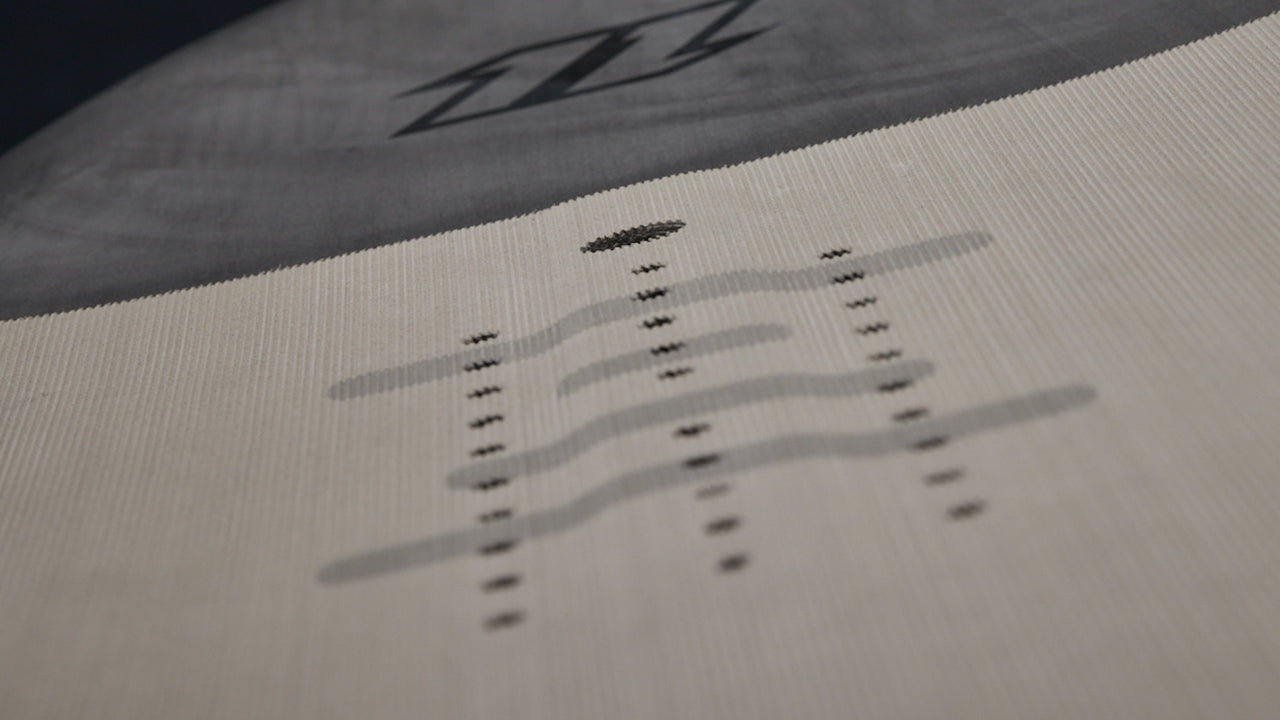

New customisable strap insert positions

Our unique structurally-integrated DropBox has a longer track for a wider adjustment range, allowing you to precision-tune the foil set up for your rider weight. A measurement guide next to the track aids correct positioning. Industry-standard 90mm track spacing means the Swell is compatible with most foil systems.

Hybrid Carbon Technology

This allows air to pass in and out of the board, while preventing water from entering. The vent is factory-fitted and does not require any adjustment. *3’10 does not have a GORE™ vent.

Integrated PVC structural reinforcement

DropBox

GORE™ waterproof 2-way vent

Corduroy Deck Grip
