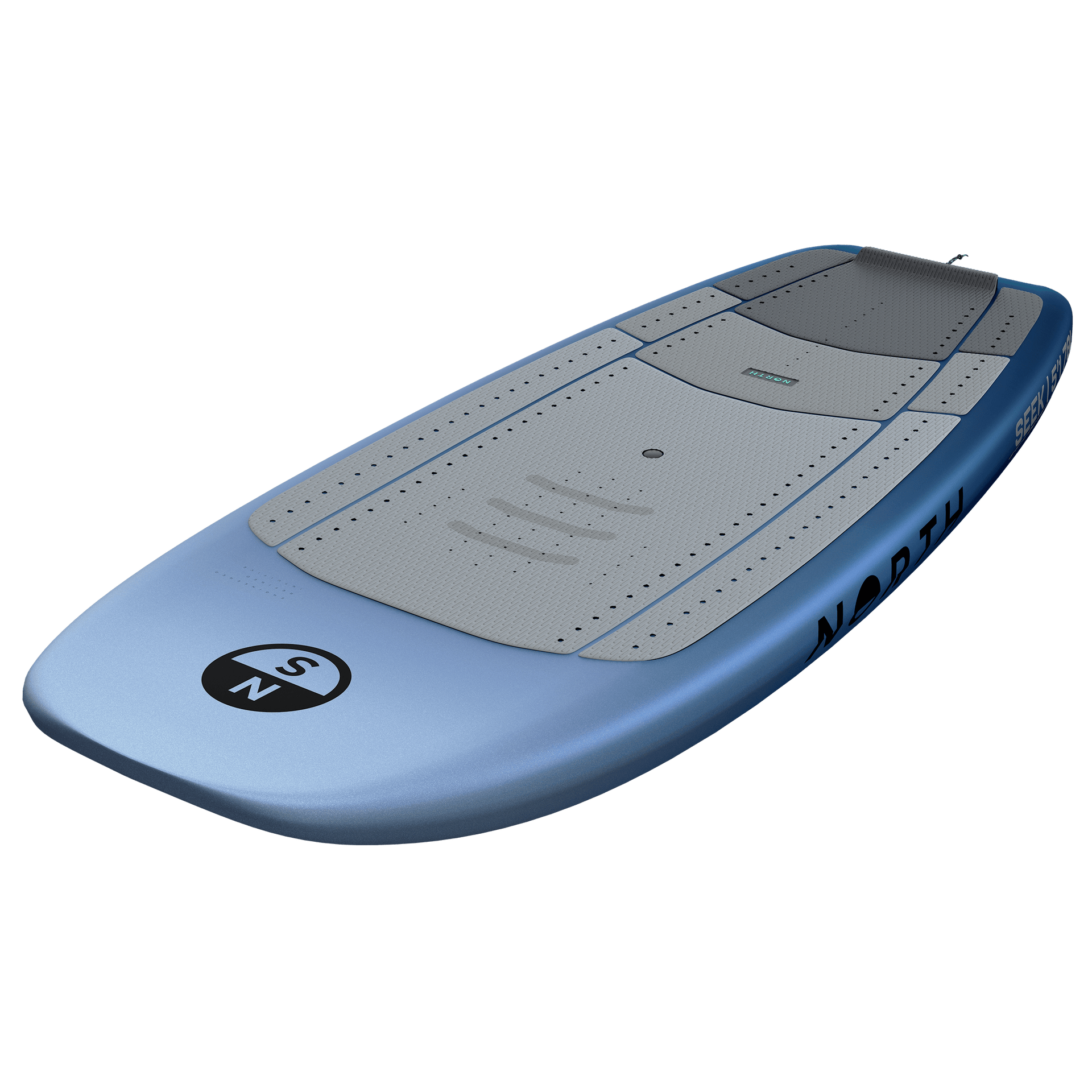

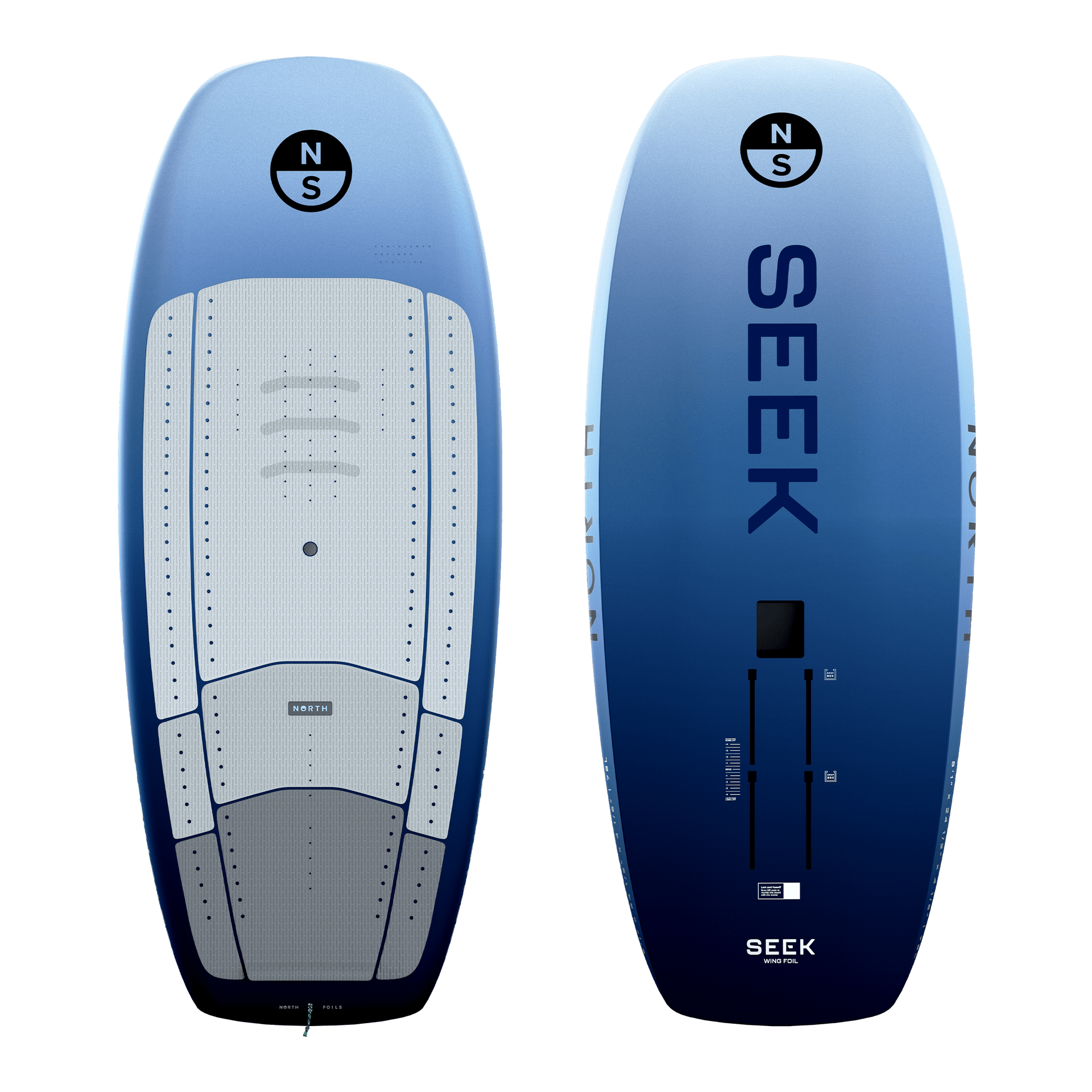

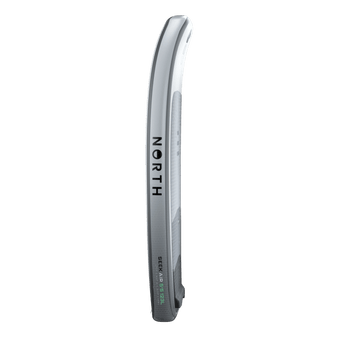

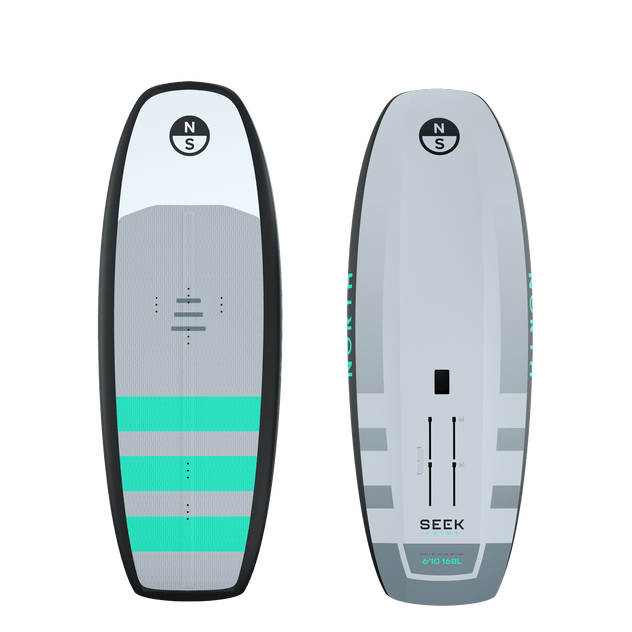

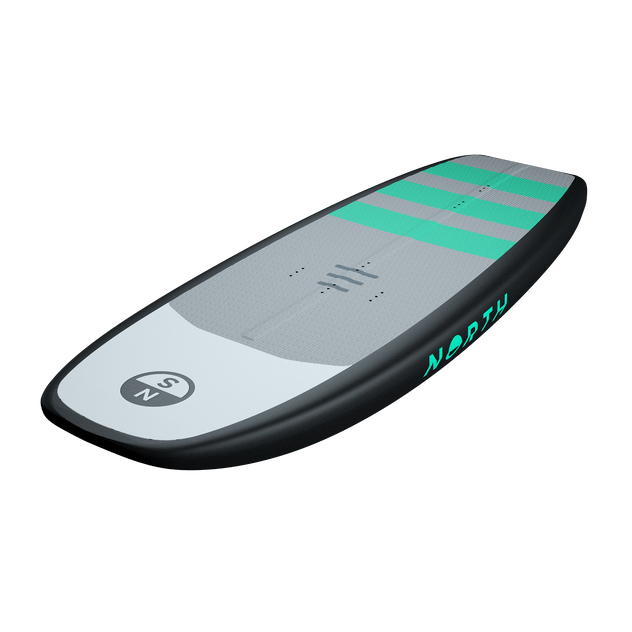

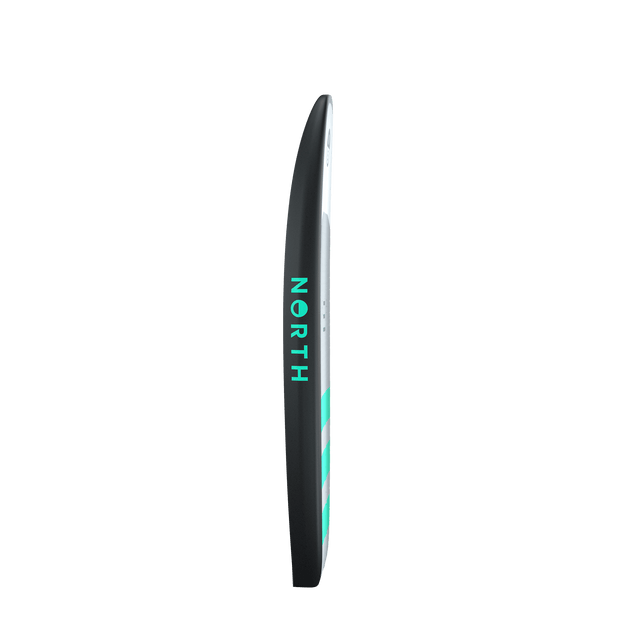

North SEEKWing Foil Board2025
product code: 85013.250011
Features
- Efficient tri-plane hull design for fast release and smooth touchdown recovery
- Longer waterline with low entry rocker for speed and acceleration
- Deep concaved deck for direct foil control
- Max-traction non-abrasive deck grip with tactile stance reference
- DropBox 165x90mm Fast Foil Mount (titanium screws and t-nuts pre-installed)
- Centreline
- offline and V-strap insert options (straps sold separately)
Materials
- Lightweight and durable Hybrid Carbon Technology
- All titanium mounting hardware included
Board with EVA Deckpad, DropBox Titanium Screw Pack (4x M8x30mm, 4x T-Nuts), Leash Attachment Loop

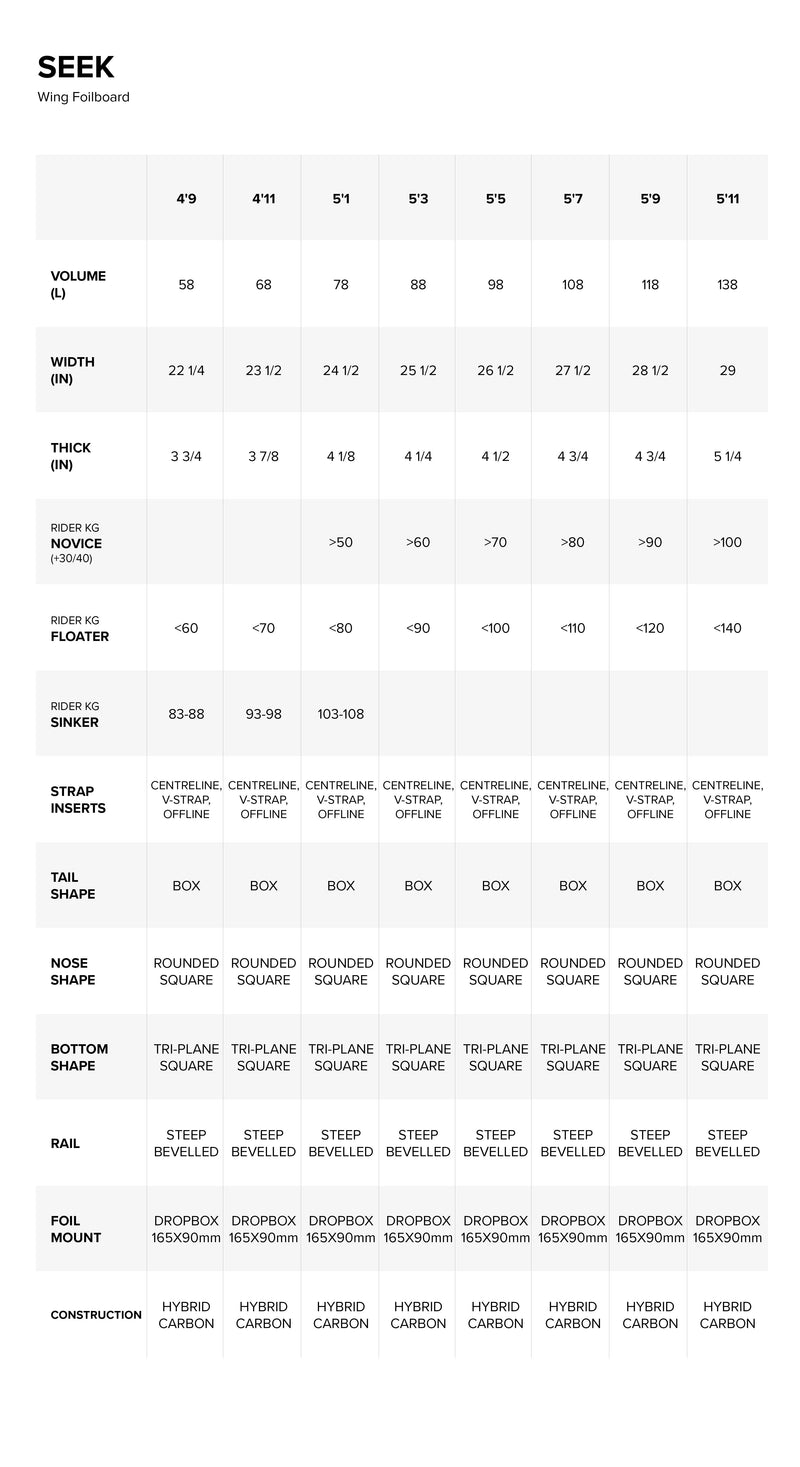

Size | Volume (L) | Length (ft) | Width (in) | Thick (in) | Novice Rider (kg) | Floater Rider (kg) | Sinker Rider (kg) |
---|---|---|---|---|---|---|---|
4’9 | 58 | 4’9 | 22 1/4 | 3 3/4 | <60 | 83-88 | |
4’11 | 68 | 4’11 | 23 1/2 | 3 7/8 | >50 | <70 | 93-98 |
5’1 | 78 | 5’1 | 24 1/2 | 4 1/8 | >60 | <80 | 103-108 |
5’3 | 88 | 5’3 | 25 1/2 | 4 1/4 | >70 | <90 | |
5’5 | 98 | 5’5 | 26 1/2 | 4 1/2 | >80 | <100 | |
5’7 | 108 | 5’7 | 27 1/2 | 4 3/4 | >90 | <110 | |
5’9 | 118 | 5’9 | 28 1/2 | 4 3/4 | >100 | <120 | |
5’11 | 138 | 5’11 | 29 | 5 1/4 | >100 | <140 |
4’9 | 4’11 | 5’1 | 5’3 | 5’5 | 5’7 | 5’9 | 5’11 |
---|---|---|---|---|---|---|---|
58 | 68 | 78 | 88 | 98 | 108 | 118 | 138 |
4’9 | 4’11 | 5’1 | 5’3 | 5’5 | 5’7 | 5’9 | 5’11 |
22 1/4 | 23 1/2 | 24 1/2 | 25 1/2 | 26 1/2 | 27 1/2 | 28 1/2 | 29 |
3 3/4 | 3 7/8 | 4 1/8 | 4 1/4 | 4 1/2 | 4 3/4 | 4 3/4 | 5 1/4 |
>50 | >60 | >70 | >80 | >90 | >100 | >100 | |
<60 | <70 | <80 | <90 | <100 | <110 | <120 | <140 |
83-88 | 93-98 | 103-108 |
Efficient tri-plane hull
Designed for earlier takeoffs and faster release.Slightly lower entry rocker improves speed and acceleration
The lower nose rocker provides more waterline length
Deep recessed single concave deck
allowing the board to reach lifting speed earlier.
Centreline
The concaved deck
offline and V-Strap Inserts
especially in the standing area
Compact outline with square nose and tail
lowers the rider’s centre of gravity.
Steep bevelled rails
Multiple positioning options for each strap allow you to personalise your stance - or go strapless.
Hybrid Carbon Technology
The forgiving modern shape provides maximum stability and means the board is less sensitive to where you place your feet (or foil).
DropBox Fast Foil Mounting Track
The steep rails keep the volume toward the outside edge of the board
GORE™ waterproof 2-way vent
adding again to the stability and making it easier to stand on and get going.
Non-abrasive max-traction Deck Grip
Lighter weight construction for stiffnessIntegrated underside carry handle
manoeuvrability and glide.Efficient tri-plane hull
The double V-shape in the bottom contour of the board is created by a single concave in the centre with an angled planing surface on each side. The water tracks from the central concave and side rails to the two longitudinal spines
Slightly lower entry rocker improves speed and acceleration
allowing the board to lift and release quickly
Deep recessed single concave deck
without sticking. The angled-planing surfaces run right through to the tail
Centreline
allowing you to touch down on more variable rail angles without catching.
offline and V-Strap Inserts
The concaved deck
Compact outline with square nose and tail
especially in the standing area
Steep bevelled rails
lowers the rider’s centre of gravity. The recessed deck results in most of the board’s volume being shifted out toward the rails
Hybrid Carbon Technology
in turn providing greater balance and stability on takeoffs and touchdown. The curve of the standing deck gives you greater leverage and heel/toe roll control.
DropBox Fast Foil Mounting Track
Multiple positioning options for each strap allow you to personalise your stance - or go strapless. In addition to the centreline and V-strap inserts
GORE™ waterproof 2-way vent
there is an offline strap insert option for more ergonomic goofy or natural riding. (Free-Lo
Non-abrasive max-traction Deck Grip
Free
Integrated underside carry handle

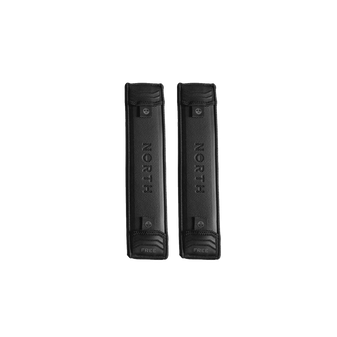

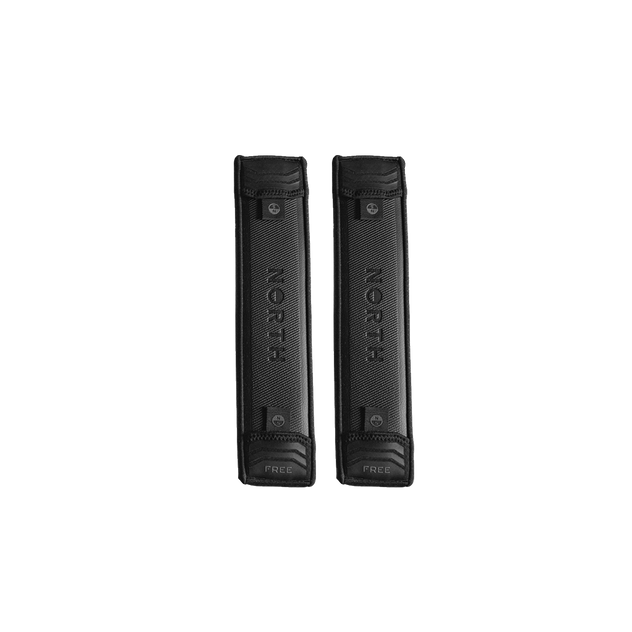

Free-V and Free-Lo V Foil Straps sold separately)








"With its longer and narrower redesign it gets up and flying faster and makes it easier to land the most technical freestyle tricks."
RACE & FREESTYLE WING FOILER
Fabian Muhmenthaler
"With its longer and narrower redesign it gets up and flying faster and makes it easier to land the most technical freestyle tricks."

Choosing the right board
Featuring our patented DropBox fast foil-mounting, North Foilboards are engineered for lightweight durability and shaped for performance and control with fast and effortless touchdown recovery. Kite, Surf, Wing or SUP Foil with confidence.
