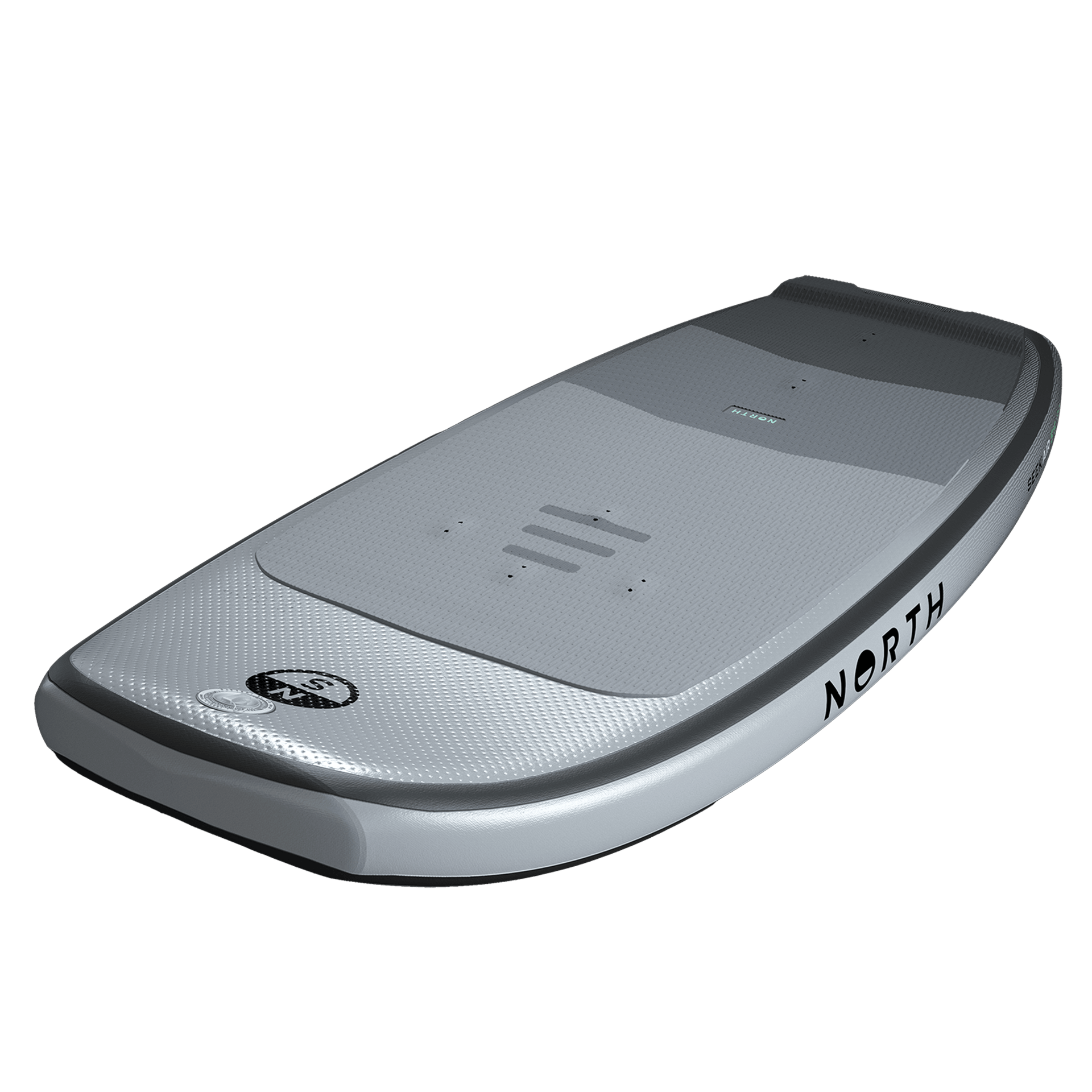

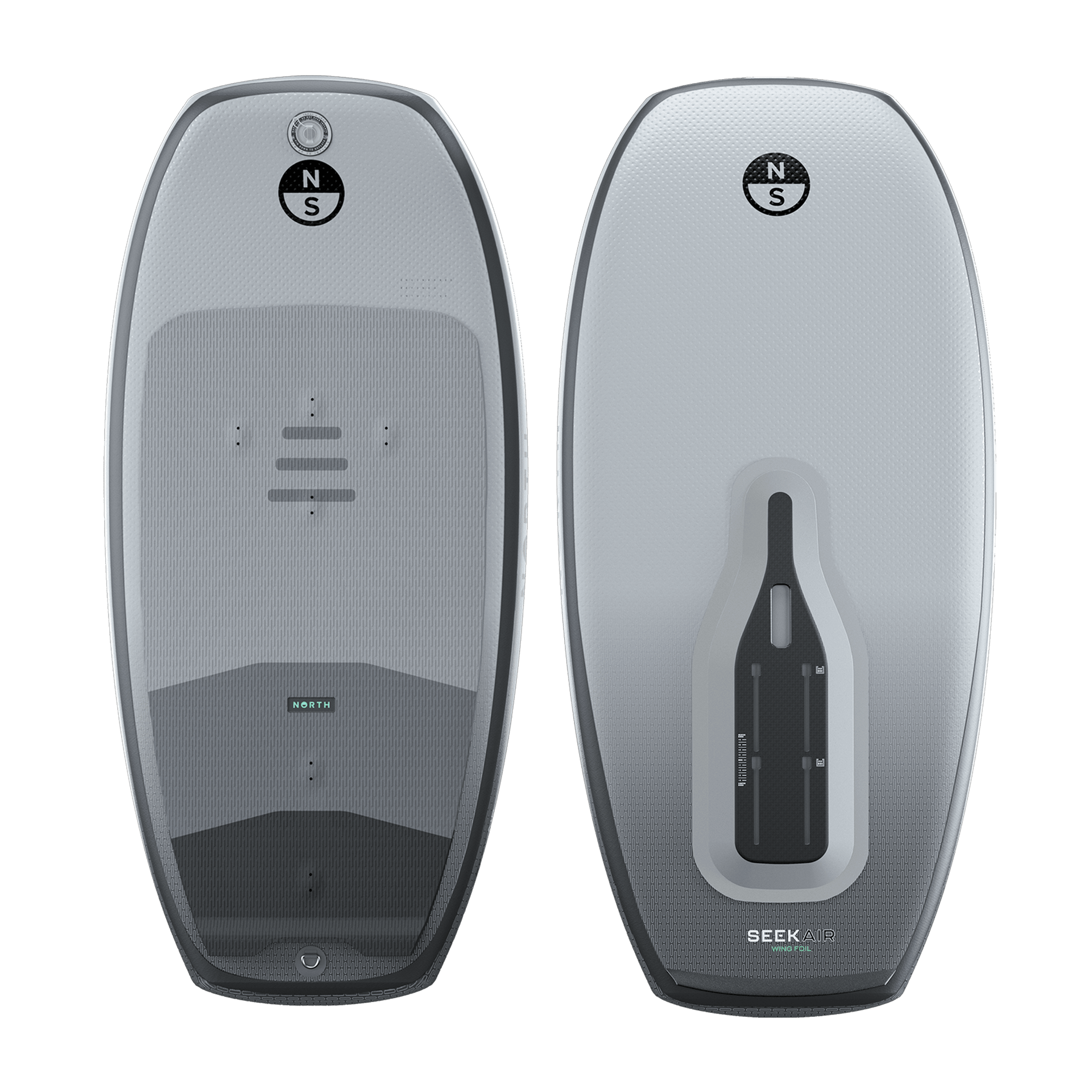

North SEEK AIRInflatable Foil Board2024
product code: 85013.240015
Features
- CST-base custom-curved to board rocker
- DropBox Fast Foil Mounting
- Durable / impact absorbing / ding resistant
- Forgiving performance rails
- Sharp release tail
- Effortless take-offs and touchdown recovery
- Direct responsive foil connection
- Ideal for boat foiling / winging / learning to foil
- V-Strap and Centreline Foot strap inserts
- 5’9 / 6’2 entry to foiling - come with fins
- 15PSI Inflation pressure
- Includes recycled fabric backpack with wheels
- Includes Inflation Pump + Repair Kit + DropBox 23mm Screw Pack
Materials
- PVC Dropstitch
- Carbon Sandwich Transfer Base
- EVA Deckpad
Inflatable Board Pump, Board Bag, Repair Kit, DropBox 23mm Screw Pack, Seek Air Foot Strap Screw Pack (M6x16mm and M6x18mm)
Size | Volume (L) | Length (ft) | Width (in) | Thick (in) | Novice Rider (kg) | Floater Rider (kg) | Sinker Rider (kg) |
---|---|---|---|---|---|---|---|
4’10 | 78 | 4’10 | 25 1/6 | 4 | <55 | <75 | <95 |
5’1 | 110 | 5’1 | 28 1/8 | 4 3/4 | <85 | <105 | >85 |
5’5 | 124 | 5’5 | 29 7/8 | 4 3/4 | <95 | <120 | >95 |
5’9 | 132 | 5’9 | 30 | 4 3/4 | <100 | <125 | >100 |
6’2 | 155 | 6’2 | 31 | 4 3/4 | >75 | >95 | |
4’10 | 5’1 | 5’5 | 5’9 | 6’2 | |
---|---|---|---|---|---|
78 | 110 | 124 | 132 | 155 | |
4’10 | 5’1 | 5’5 | 5’9 | 6’2 | |
25 1/6 | 28 1/8 | 29 7/8 | 30 | 31 | |
4 | 4 3/4 | 4 3/4 | 4 3/4 | 4 3/4 | |
<55 | <85 | <95 | <100 | >75 | |
<75 | <105 | <120 | <125 | >95 | |
<95 | >85 | >95 | >100 |

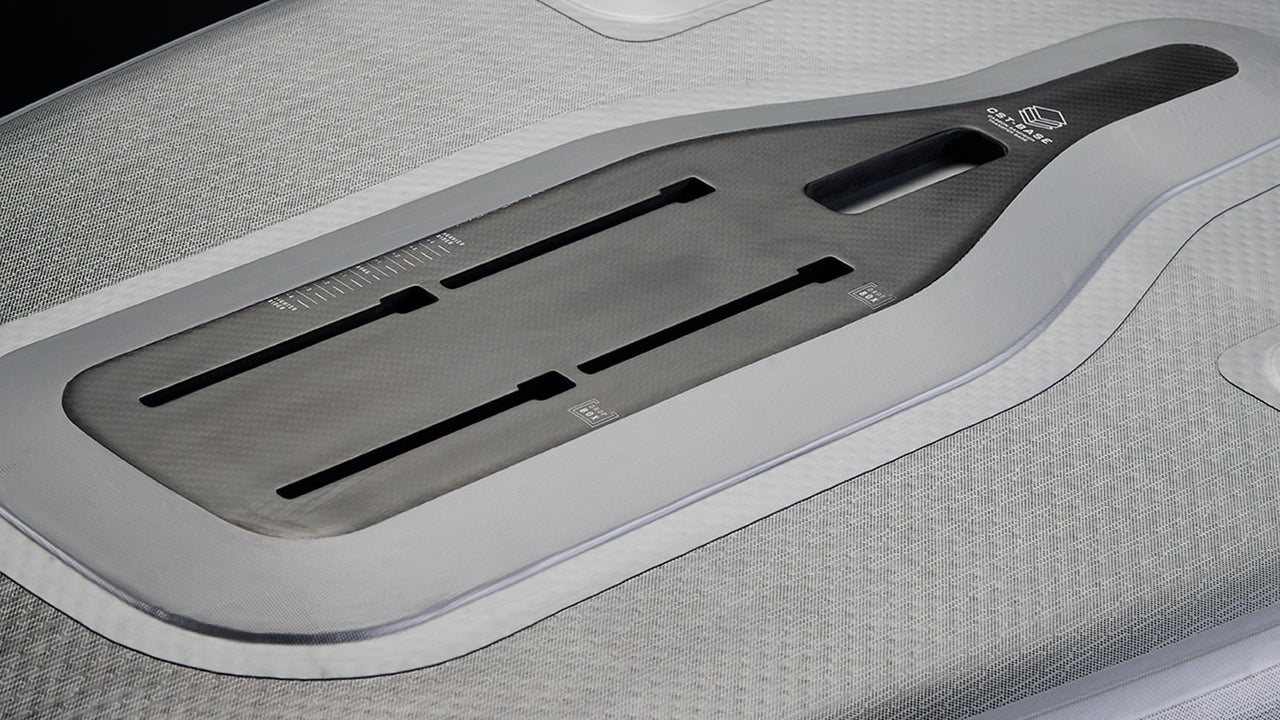

Carbon Sandwich Transfer Base
Our unique Carbon Sandwich Transfer (CST) base with DropBox fast foil mounting. The CST base is designed for the most direct and responsive connection to the foil. It is engineered with a slight curve to match the rocker of the boardDropBox
for outstanding control and pumpability. The CST base plate runs the full length of your stance

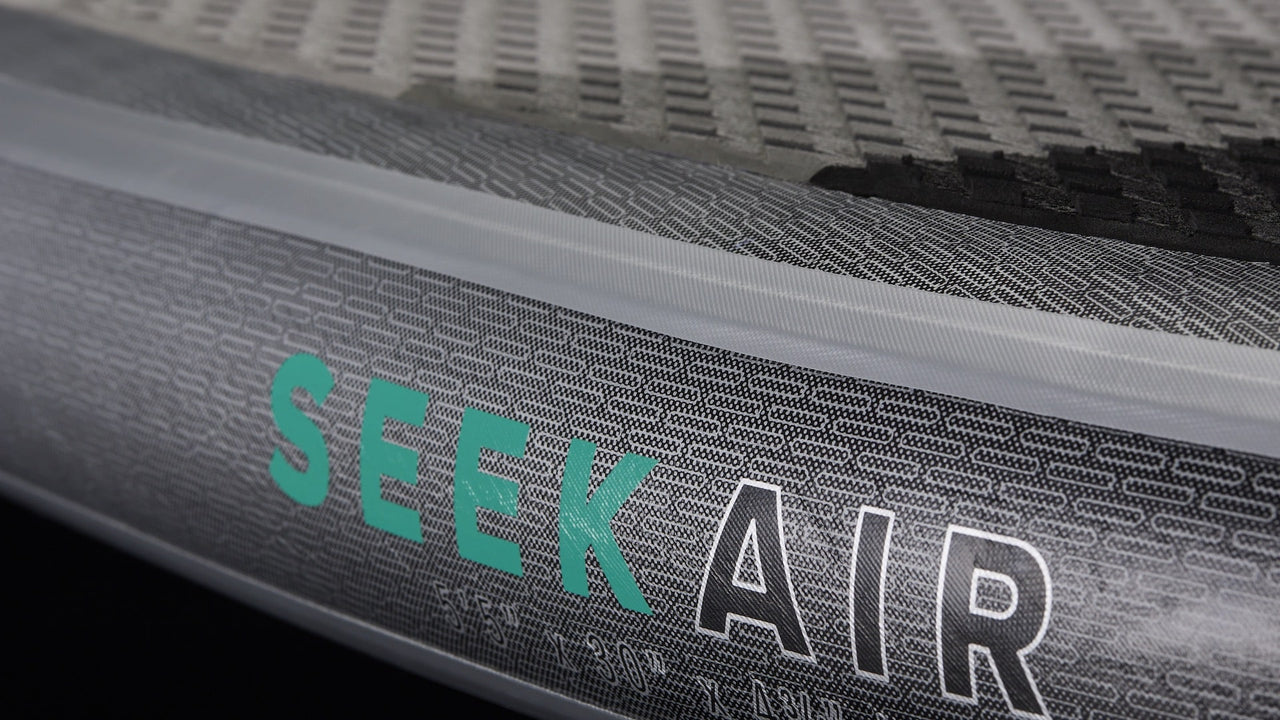

Durable & Ding-Resistant
transferring the load and your steering impulses directly to the foil.
Smooth Touchdown Recovery
Speed-dial your foil setup. Simply drop your foil pre-assembled with screws and t-nuts into the track

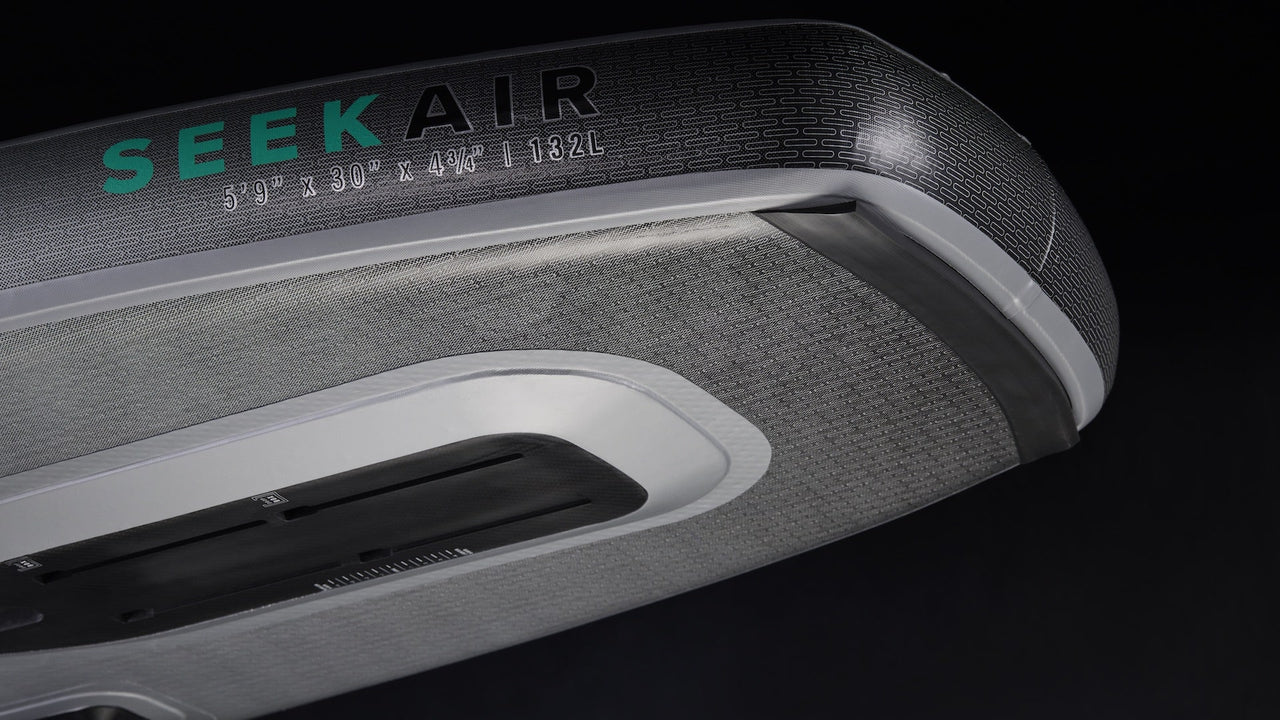

Fast release tail
slide it backwards

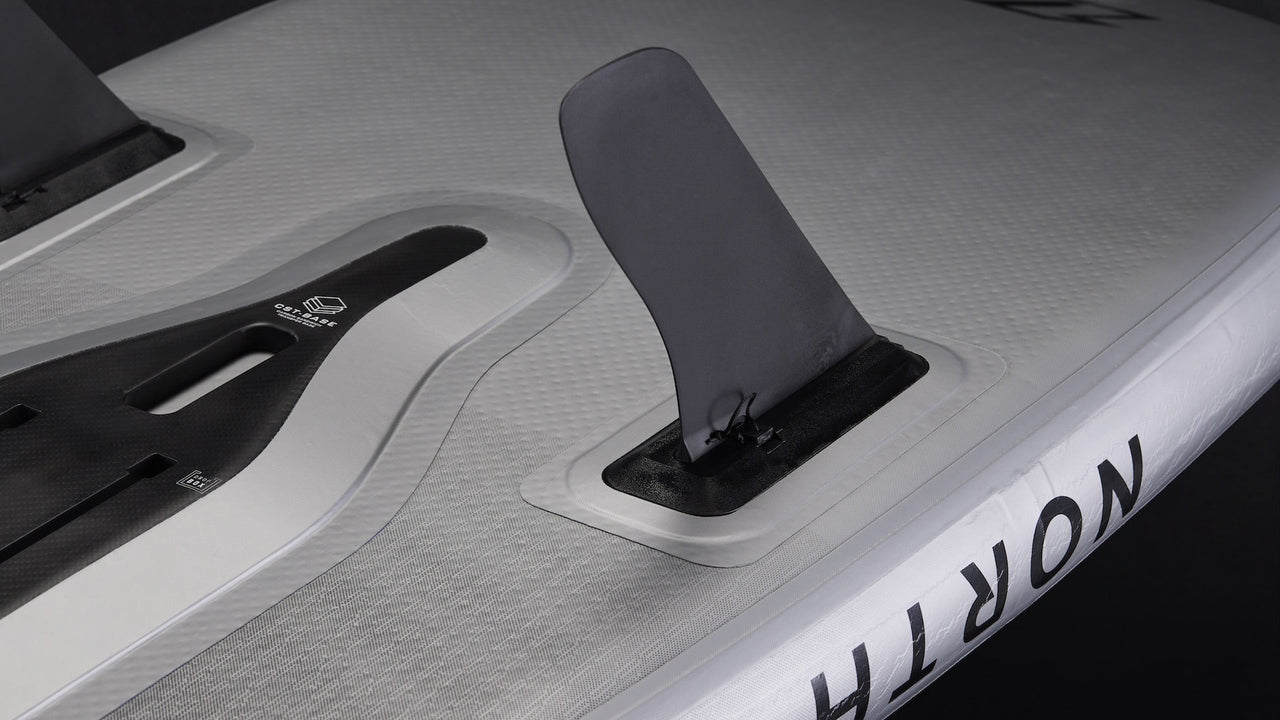

Versatile Side Fins 5’9 / 6’2
then tighten the screws to fasten. Our unique DropBox fast foil mounting system has a longer track for a wider adjustment range

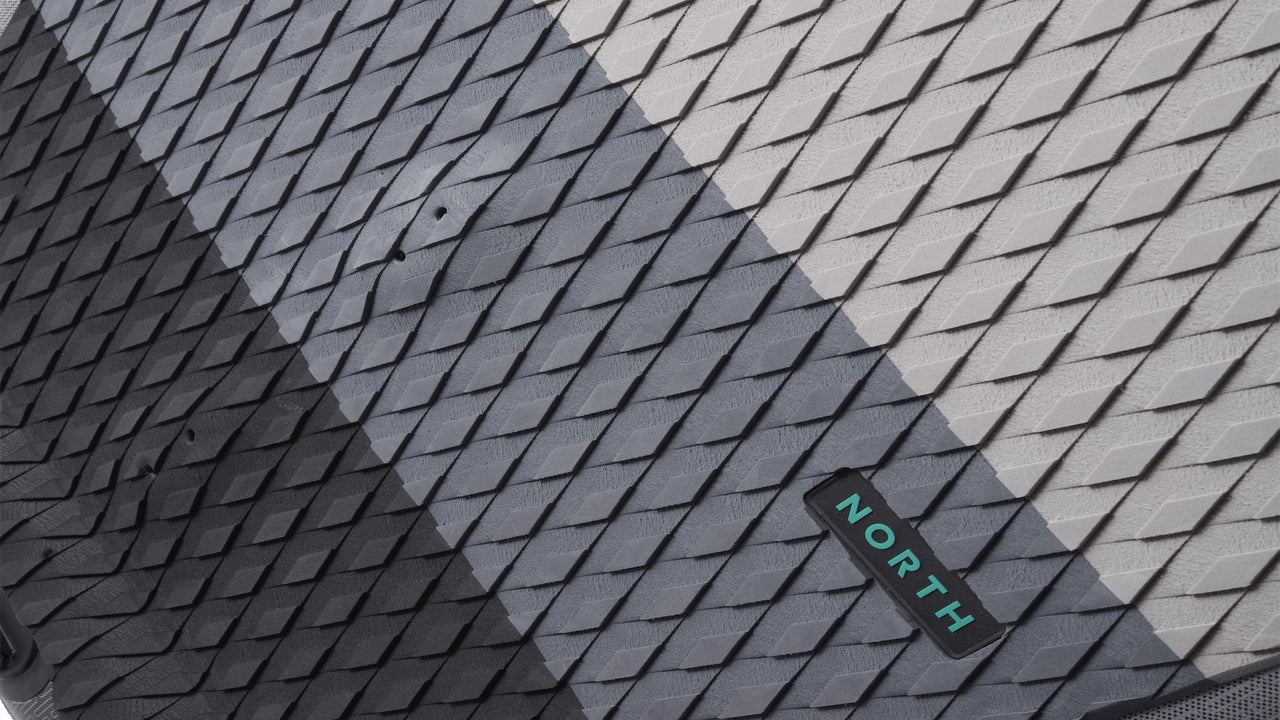

Intuitive Comfortable Deckpad
allowing you to precision-tune the foil set up for your rider weight. A measurement guide next to the track aids correct positioning. Industry-standard 90mm track spacing means the Seek is compatible with most foil systems.

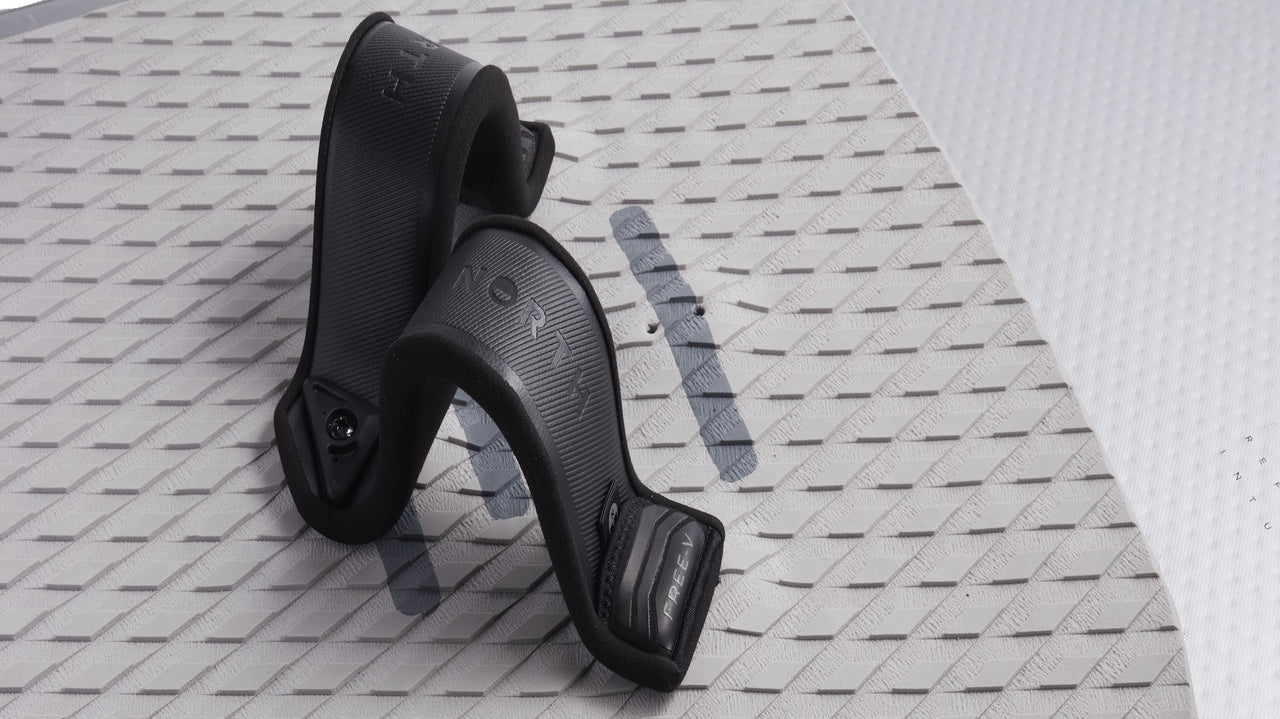

Centreline & V-Strap Inserts
The inflatable PVC drop stitch technology construction is durable

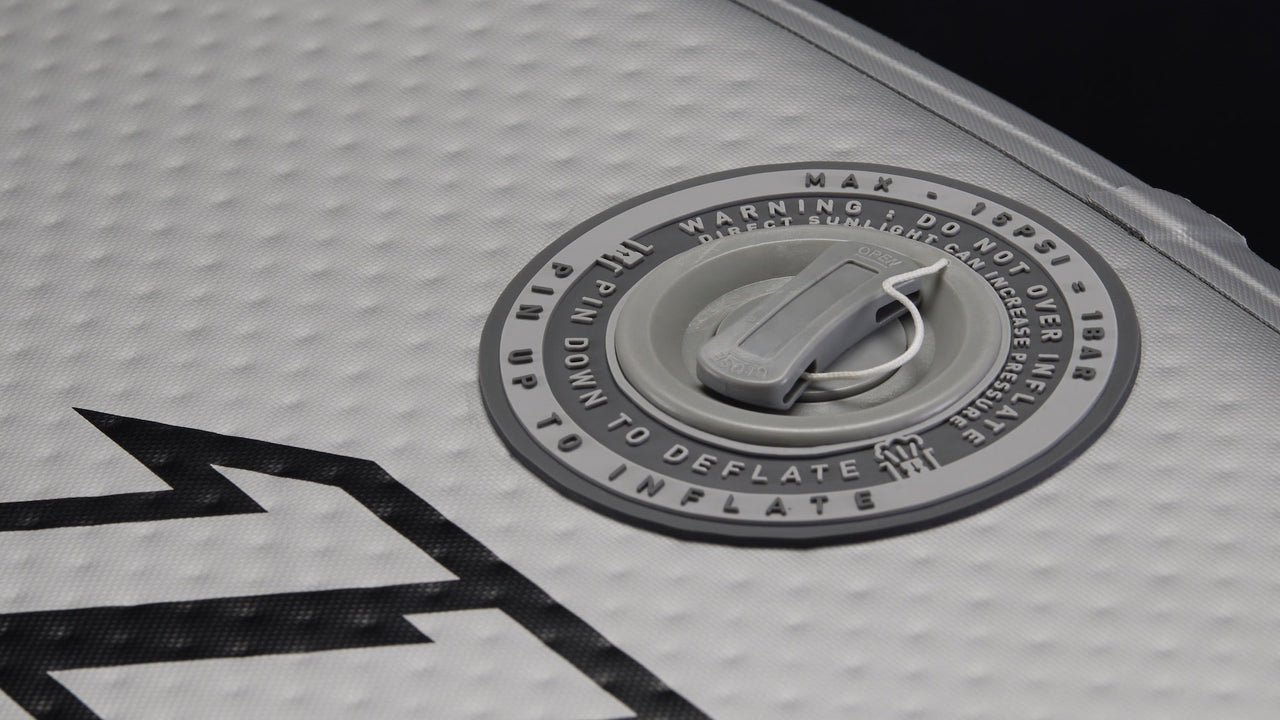

Inflate to 15PSI
impact absorbing and ding resistant. This makes it ideal for the boat

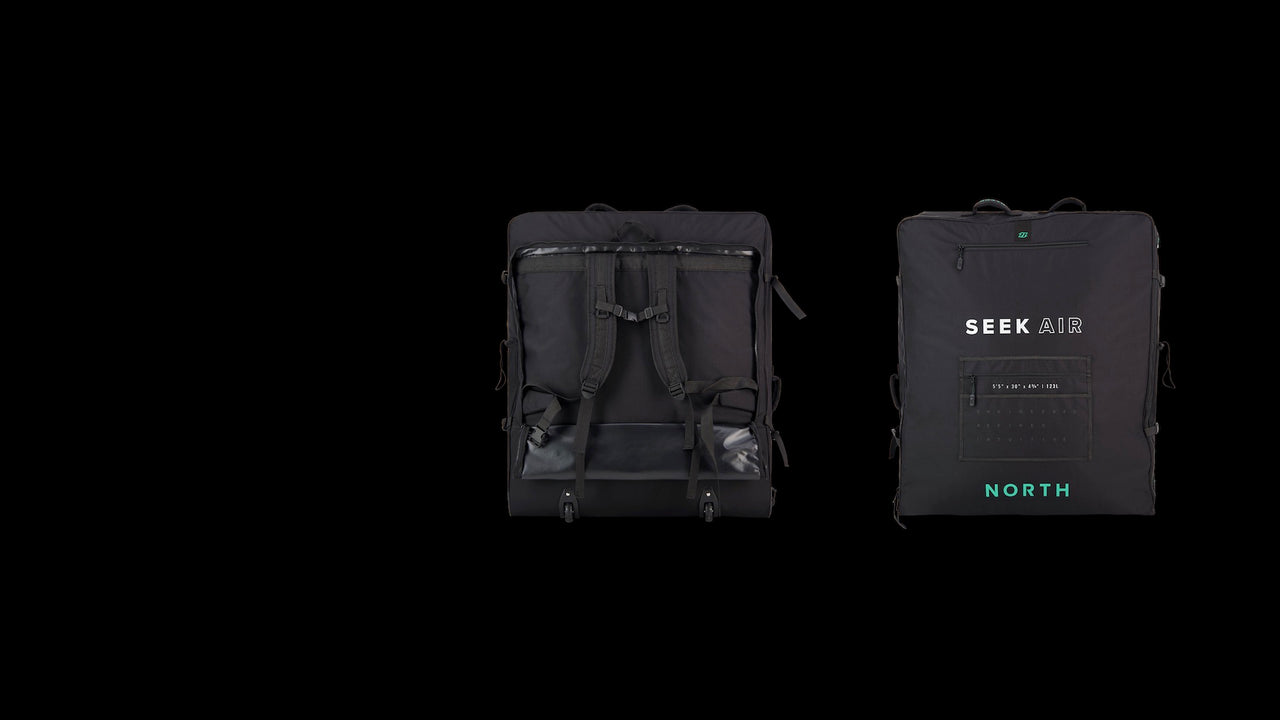

Travel-friendly backpack with rollers
and a forgiving surface to fall on when you’re learning to wing or foil.

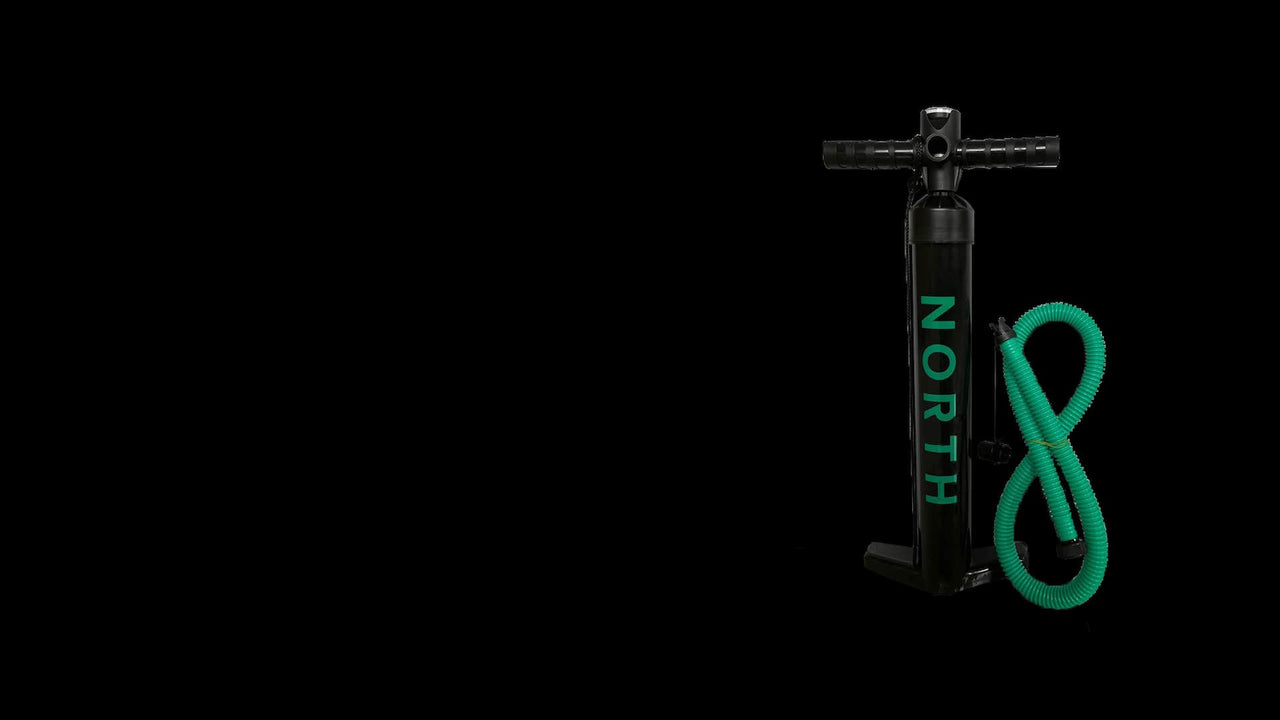

Dual-use pump included
The steepCarbon Sandwich Transfer Base
DropBox
Durable & Ding-Resistant
Smooth Touchdown Recovery
Fast release tail
Versatile Side Fins 5’9 / 6’2
Intuitive Comfortable Deckpad
Centreline & V-Strap Inserts
Inflate to 15PSI
Travel-friendly backpack with rollers
Dual-use pump included



Foil, wing, pump and wake. Welcome to our world.
WHAT RIDERS SAY

"All we needed was one compact Seek Air bag – inside was the board, wings, foil and pump – it felt like a real holiday."
Pro Wingfoiler
Bowien van der Linden
"All we needed was one compact Seek Air bag – inside was the board, wings, foil and pump – it felt like a real holiday."

BEHIND THE DESIGN
Engineered
Watch the Designer Notes video with Seek Air Engineer Uli Sommerlatt and Shaper Jaimie Scott.
